B&G NemesisTM Hub

Model: 000-15683-001

Connect up to 3 NemesisTM displays easily when installed in close proximity to each other (e.g. mast or at helm).

One simple interconnect cable (0.6m in length) required per display (1 included). Choices from 5m to 30m main Power/Ethernet cable options available.

B&G NemesisTM Hub allows compact and straightforward connection of up to 3 NemesisTM displays at a key location (mast, helm etc) with a single Power/Ethernet cable run, and a simple interconnect cable from the hub to each display.

Specifications
Storage temperature

-15 degC to +55 degC (-5 degF to 131 degF)
Operating temperature	-20 degC to +60 degC (-4 degF to 140 degF)
Waterproof rating	IPX 6 and 7
Electrical
Power supply	12/24 V DC
Operating voltage	12/24 V DC (10 - 31.2 V DC (min - max)
Power consumption	2W plus max 60W distributed to connected displays.
Fuse rating	9 Amps
Physical
240g (0.44 lbs)	240g (0.44 lbs)
Interface/Connectivity

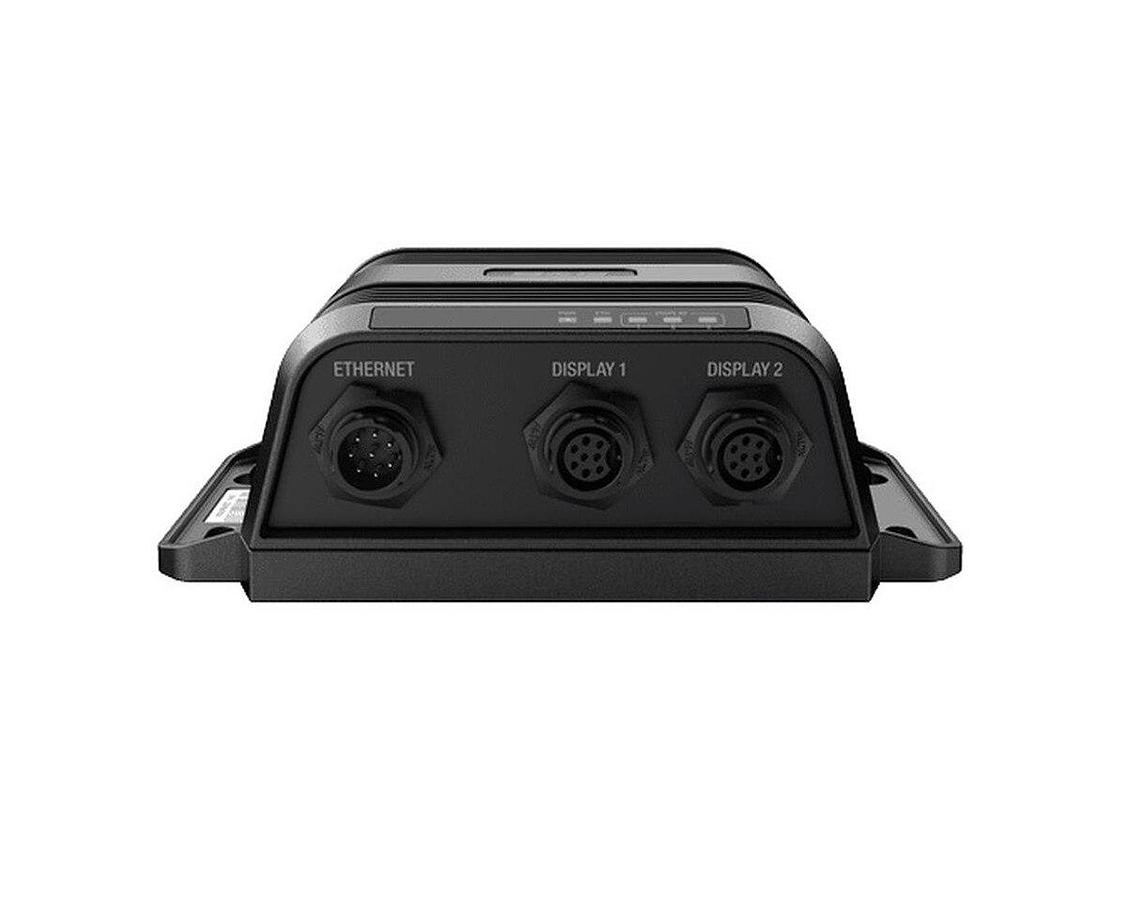

Ethernet/Power	1x 8-pin connector

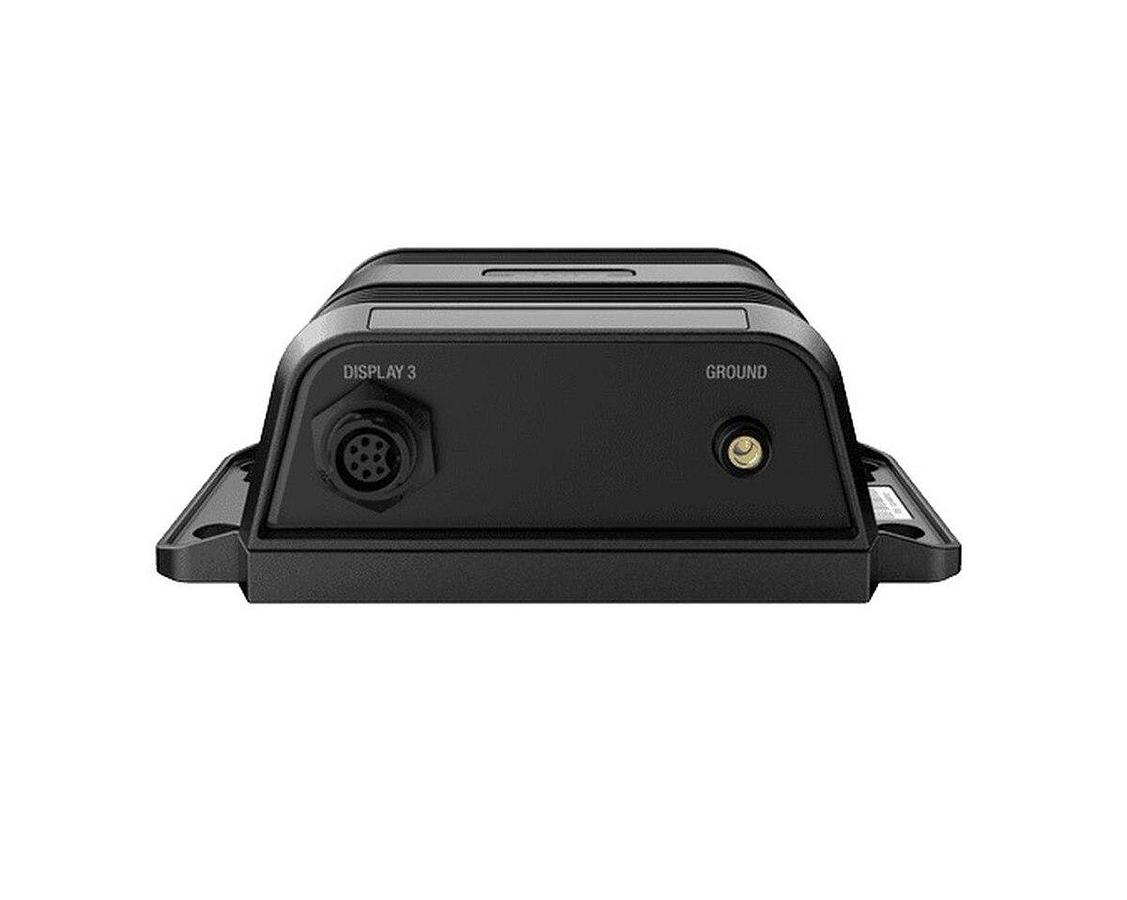

Display	3x 8-pin Ethernet connectors
Ground	1x M4 Grounding

What's in the Box:

Nemesis Hub

NemesisTM Hub Power/Ethernet Interconnect Cable

InstallationManual
