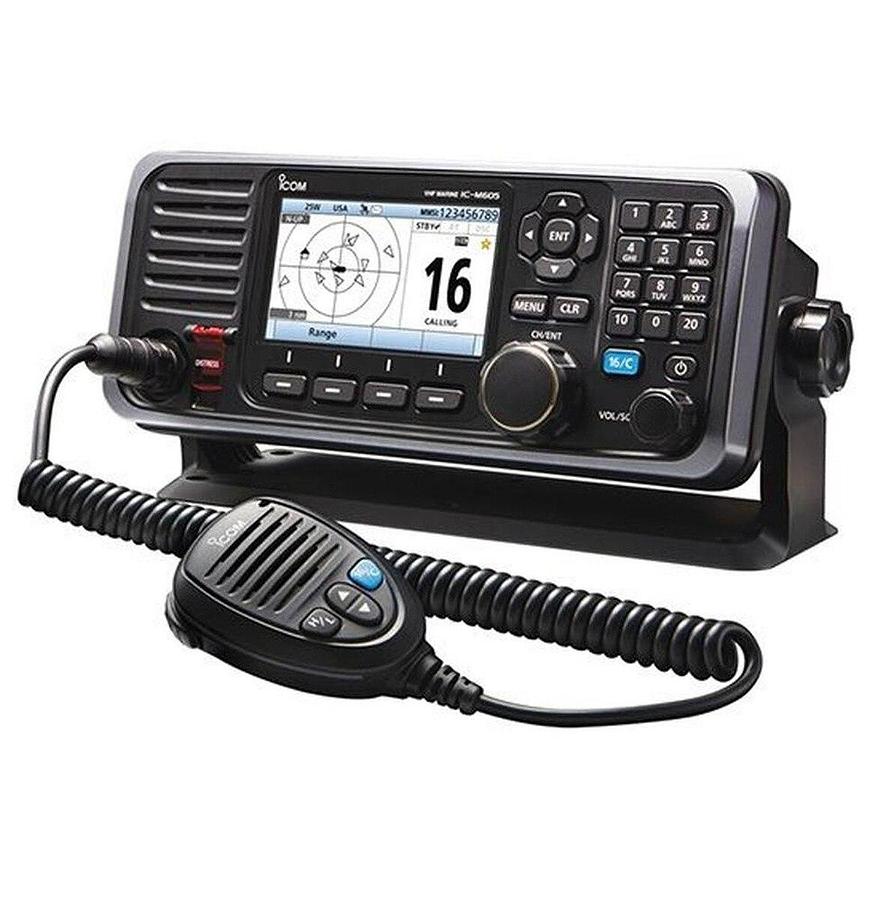

Icom M605 25W VHF AIS Rear Mic Connector

Icom M605 VHF AIS Receiver fixed mount with color display and rear mic connector

Model: M605 41 USA

4.3 in wide color TFT LCD

Night mode ensures readability in dark places

Intuitive user interface

NMEA2000TM and NMEA0183 connectivity

Class D DSC

Active noise cancelling

Last call voice recording

30W listen back hailer

Built-in horn/foghorn

IPX8 submersible (1 m depth of water for 60 minutes)

Dual and Tri-watch functions

Weather channels with alert function

DSC Multi-task function

AquaQuakeTM draining function

Instant-access button for Channel 16 and call channel

Supplied speaker microphone, HM-205RB can be connected to the rear panel

All functions of the IC-M605 (including DSC and distress operation) can beremotely controlled with up to three controllers, RC-M600 COMMANDHEAD and/or HM-195 series COMMANDMICTM, with an intercom functionavailable among the main radio and controllers. The system allowsfor maximum operating flexibility anywhere on your boat.

A combination of the directional keypad and soft keys providessimple operation. Most used functions are assigned to soft keys (atthe bottom of the display) for quick one push function access. The largeten-key pad enables you to smoothly enter channel numbers, MMSI numberswith ID names and so on.

The IC-M605's internal speaker enhances intelligibility of receivedcalls. The waterproof, paper speaker-cone provides superiorsound quality with a wide frequency range and a flat frequency response forpowerful, yet clear audio.

A weak signal adjacent to a strong signal can be clearly received bythe IC-M605. Its commercial grade receiver performance (selectivityand IMD: more than 80 dB) provides reliable communication at all times.

The GNSS (GPS, GLONASS and SBAS) receiver is integratedin the IC-M605. Position information can be simply receivedwith connection to the supplied GNSS antenna with 5 m cable, UX-241.

The Active Noise Canceling digitally removes backgroundnoise from both transmit and receive audio and provides clearcommunication in a noisy maritime environment.

When connected to the optional horn speaker, SP-37, youcan talk with crews on the deck or shore from the radio'smicrophone and can hear any reply via the horn speaker. Also availablethe RX hailer function and four patterns of automatic foghorn.

The last call voice recording function automatically saves up to twominutes of an incoming call. Don't miss any incoming messages.

Using NMEA 2000TM connectivity, the radio can exchangeGNSS, AIS reports, DSC call information data, radio frequencyand PGN list data on the network. NMEA 0183/-HS GNSS position datacan also be converted to NMEA 2000TM data for other equipment

With an optional voice scrambler unit, UT-112, the IC-M605provides 32 tone secure conversation. This function is usefulwhen you want to share private information with consort ships.

With an integrated AIS receiver, the IC-M605 can show real-time AISvessel traffic information on the display. The AIS combo screenenables you to monitor the AIS plotter during basic operation. You can directlycall a selected AIS target from the AIS screen using an individual DSC call.

Specifications
Usable channels

USA, CAN, INT, WX channels
Operating temperature range	-20 degC to +60 degC; -4 degF to +140 degF
Antenna impedance	50 Ω (SO-239)
Transmitter
Output power (at 13.8 V DC)	25 W, 1 W
Max. frequency deviation	+/- 5 kHz
Frequency tolerance	+/- 5 ppm
Spurious emissions	Less than -70 dBc (at 25 W)
Residual modulation	More than 40 dB
Adjacent channel power	More than 70 dB
Receiver
Intermediate frequency CH70	30.15 MHz, 450 kHz (1st/2nd) 21.70 MHz, 450 kHz (1st/2nd)
Sensitivity (at 12 dB SINAD) CH70 (1% BER)	0.22 μV typical 0.71 μV emf typical
Adjacent channel selectivity CH70 (1% BER)	More than 80 dB More than 80 dBμ emf
Spurious response CH70 (1% BER)	More than 77 dB More than 73 dBμ emf
Intermodulation CH70 (1% BER)	More than 80 dB More than 73 dBμ emf
Hum and noise	More than 40 dB
Audio output power(at 10% distortion)	More than 15 W with a 4 Ωexternal speaker
Input Voltage	13.8 V DC (11.7-15.9 V DC)
Input Draw	Tx 25 W output 6A Rx Max. audio 8A

What's in the Box:

M605-41 USA

Hand microphone (HM-205RB)

GNSS antenna (UX-241)

PC power cable

Mounting bracket kit

OPC2384 Adapter Cable
