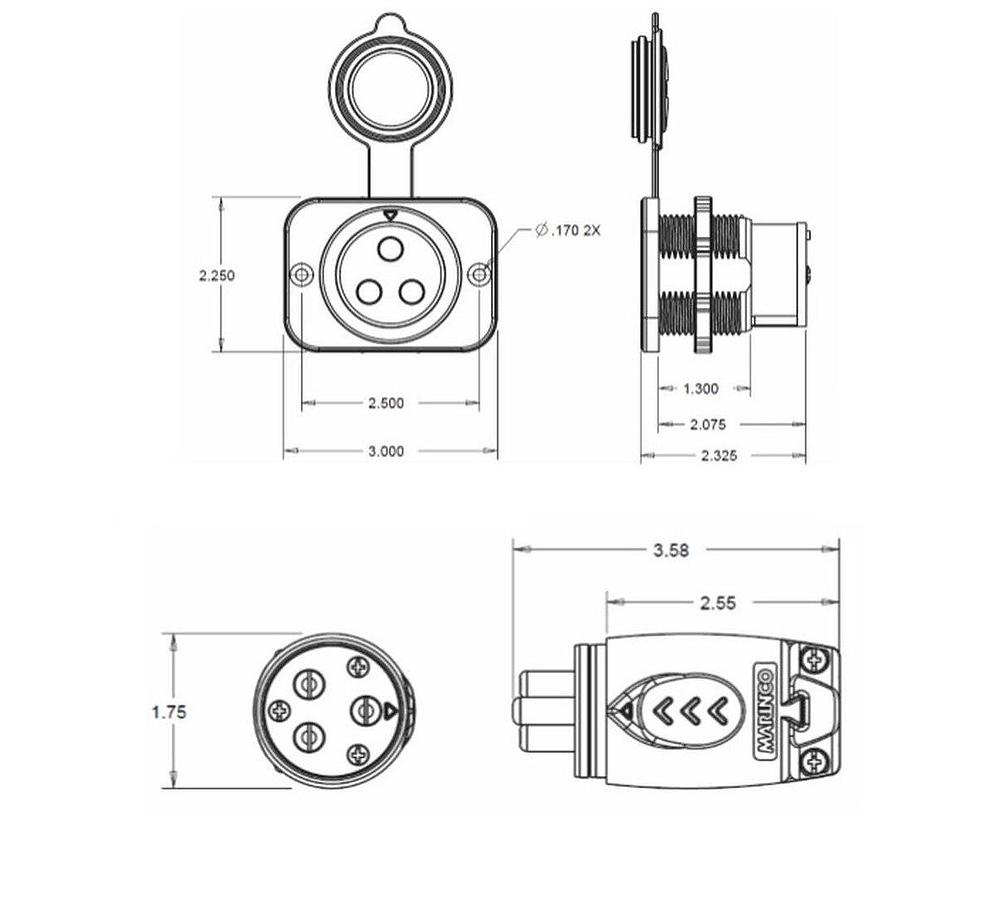

Marinco 12VCPS3 70A Trolling Motor Plug and Receptacle

Marinco 70 amp Trolling Motor Plug and Receptacle

Model: 12VCPS3

70A continuous rating

Universal design for 2 or 3-wire configuration 12V, 24V, 12/24V, 24/36V, 36V or 48V systems

Corrosion resistant, plated brass electrical components

Receptacle contains watertight sealing cap

Plug contains Integrated strain relief and keyed design with thumbprint locator

Accepts up to 6 AWG wire

70A plug and receptacle for modern trolling motors in a compact, waterproof footprint. The plug features an integrated strain relief and thumbprint locator to mate with the keyed receptacle.

Specifications
Maximum Amperage

70A (12V and 24V) 60A (36V and 48V
Voltage	12V, 24V, 12/24V, 36V, 24/36V, & 48V
Wire	2 or 3
Gender	Male
Terminals	Double Set Screw w/ferrule
Wire Size	8AWG and 6AWG
Receptacle
Maximum Amperage	70A (12V and 24V) 60A (36V and 48V
VoltageVoltageVoltageVoltageVoltageVoltageVoltage	12V, 24V, 12/24V, 36V, 24/36V, & 48V
Wire	2 or 3
Gender	Female
Terminals	Double Set Screw w/ferrule
Mounting Hole size	1.75
