Description

25 HP

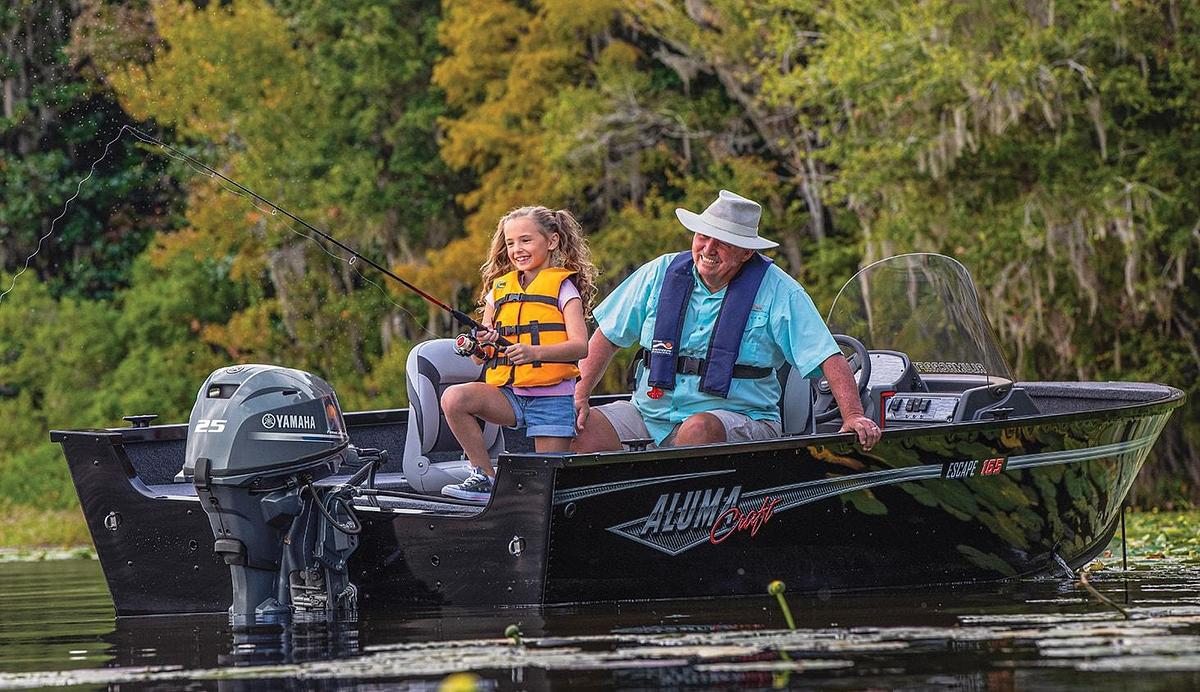

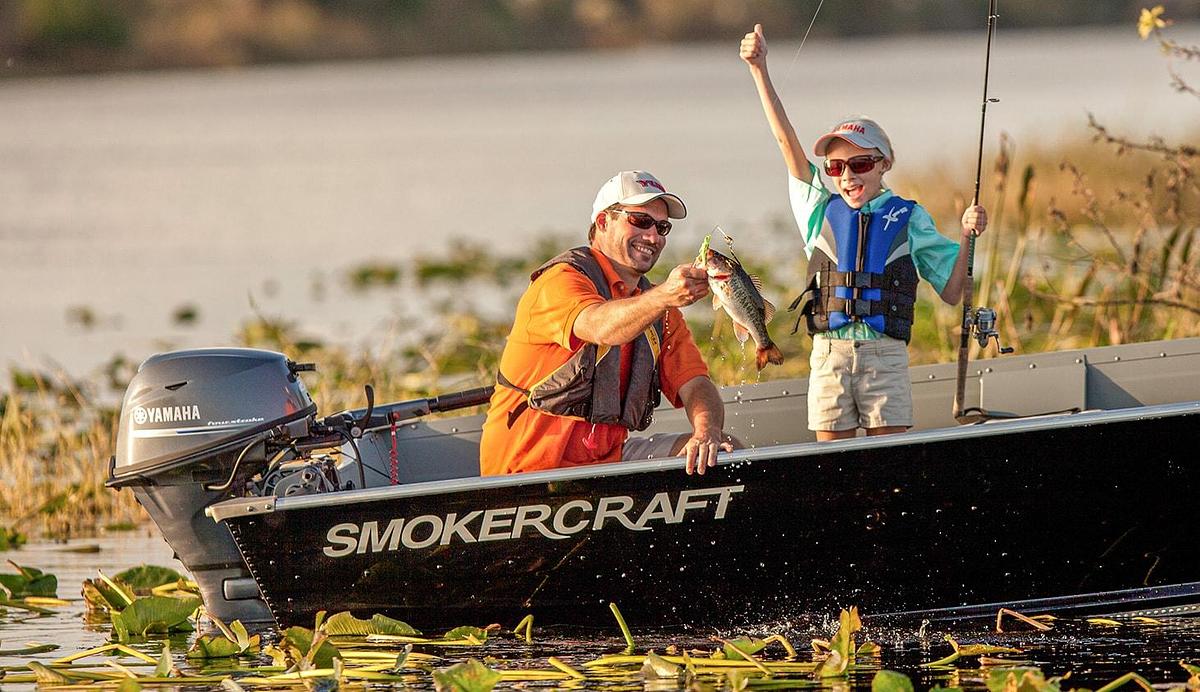

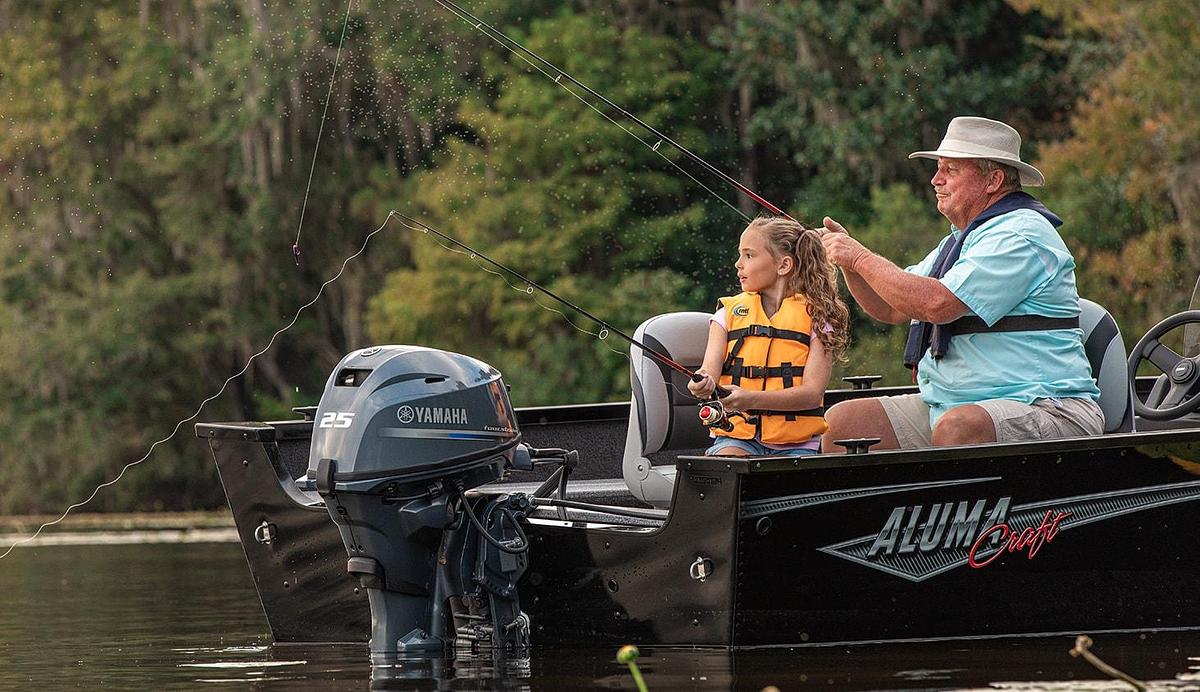

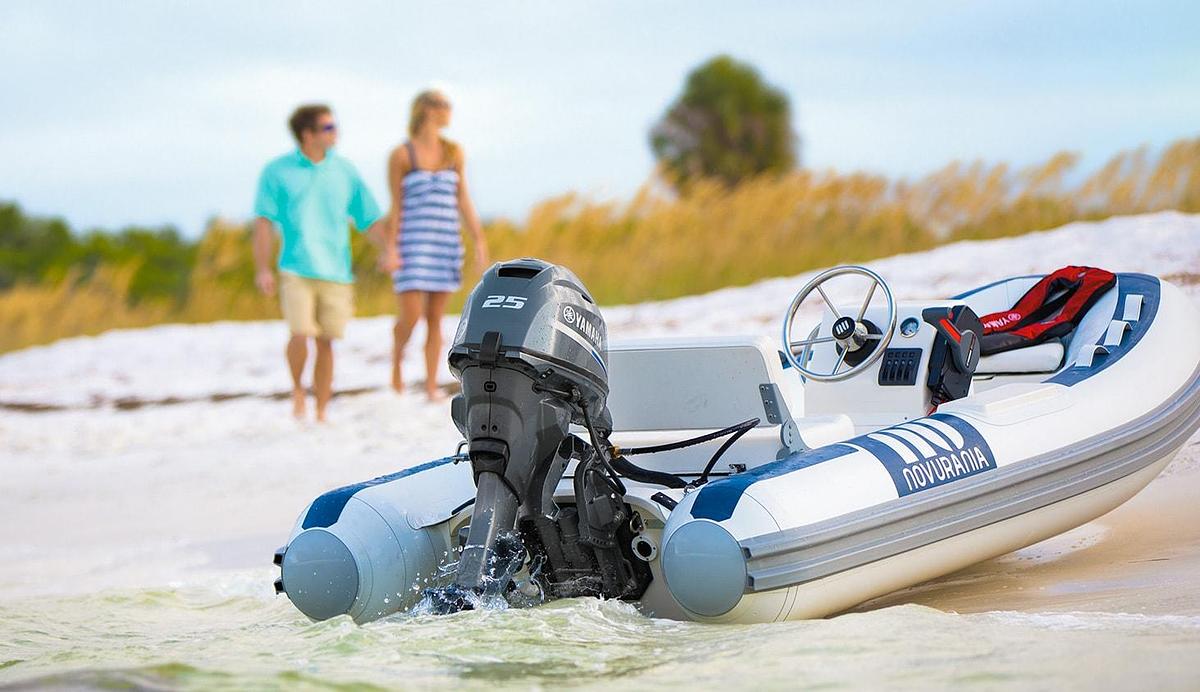

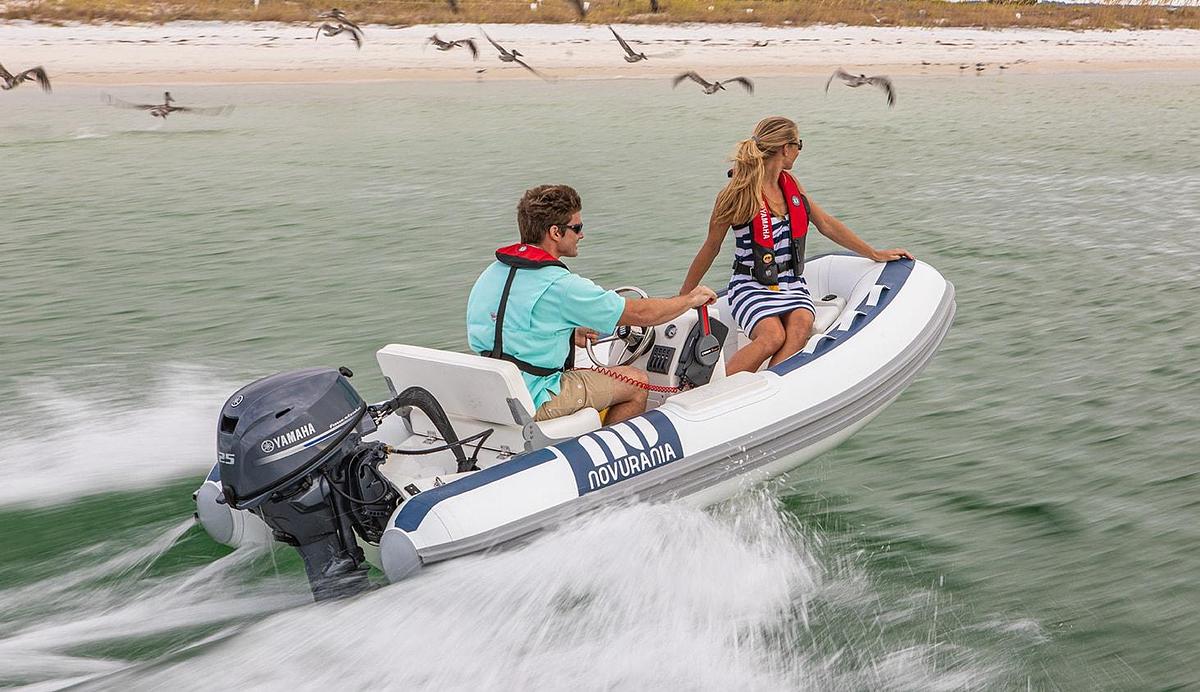

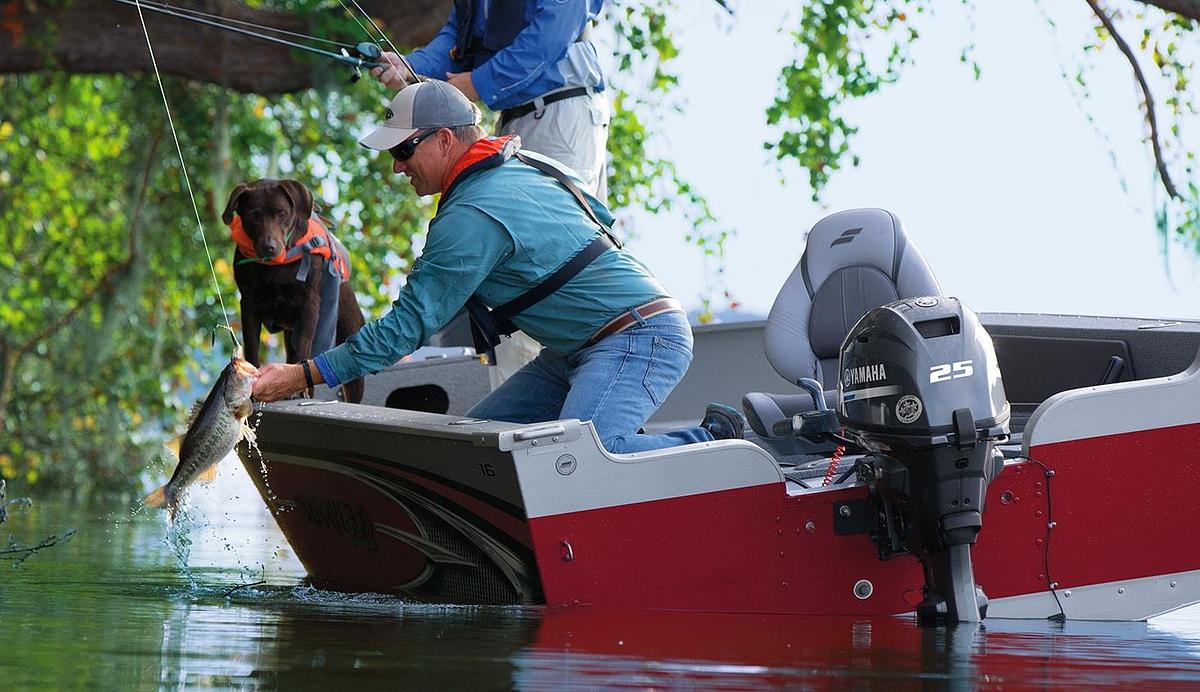

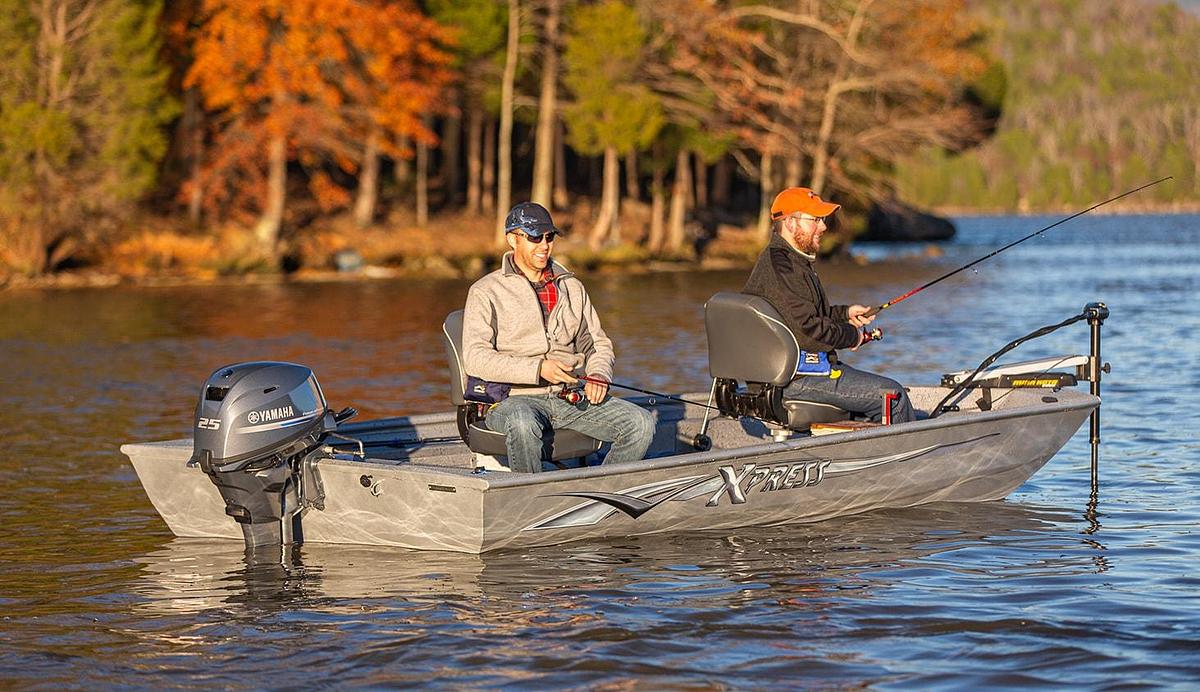

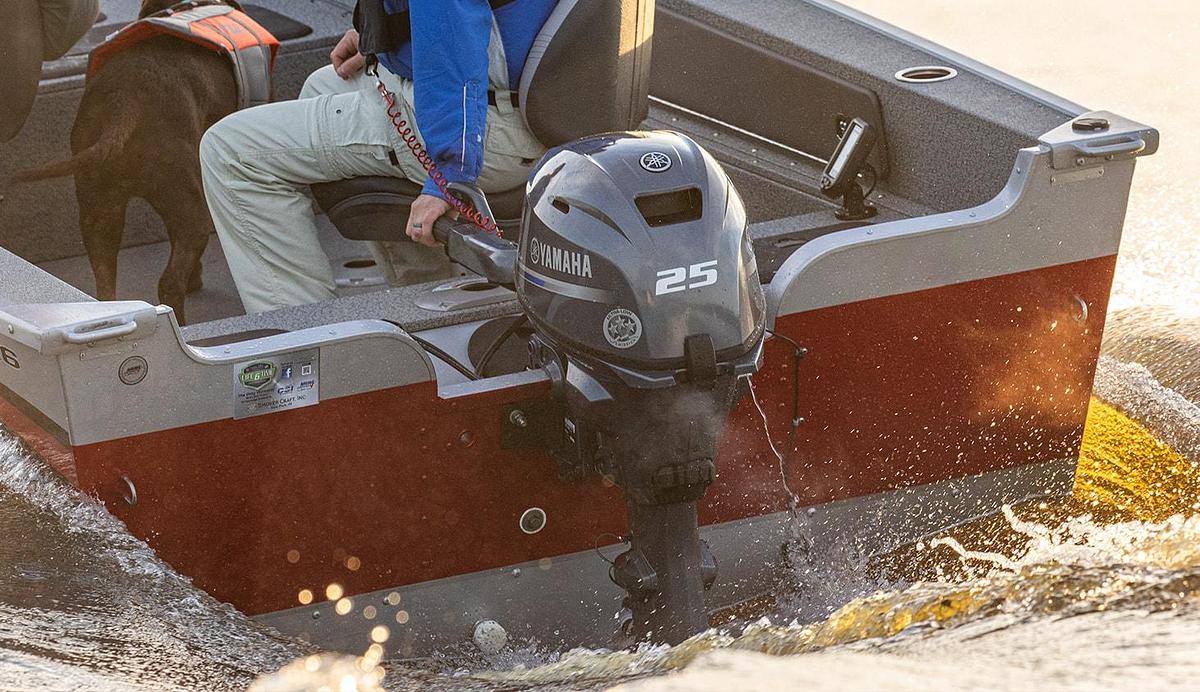

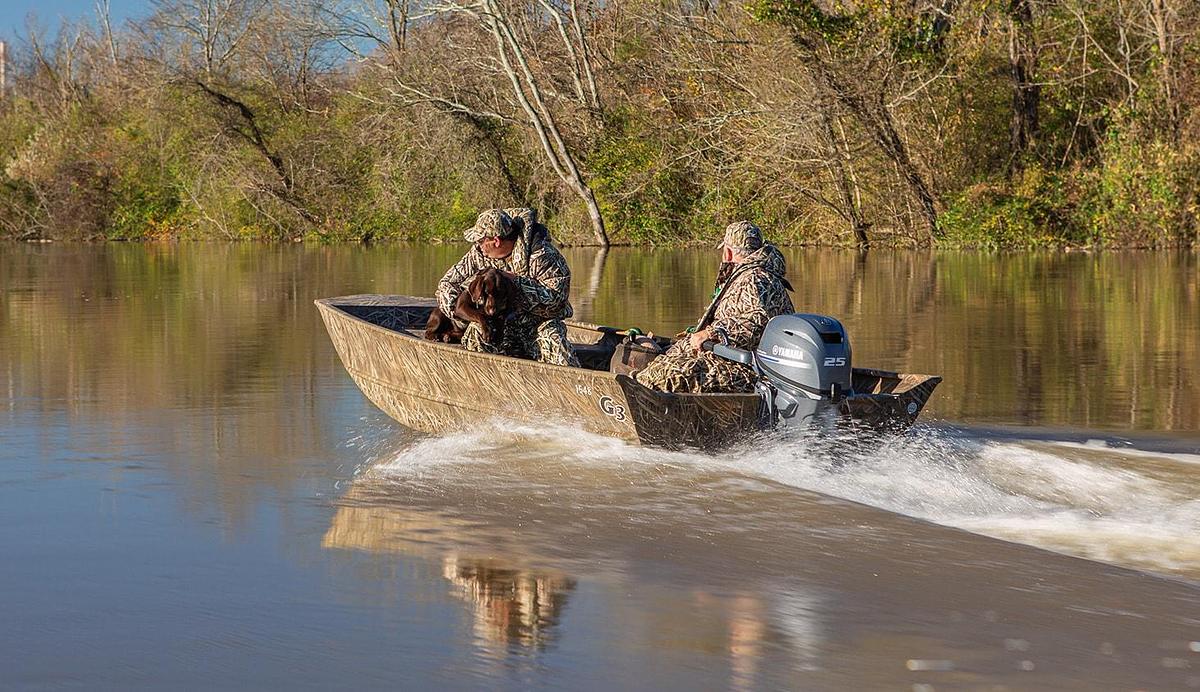

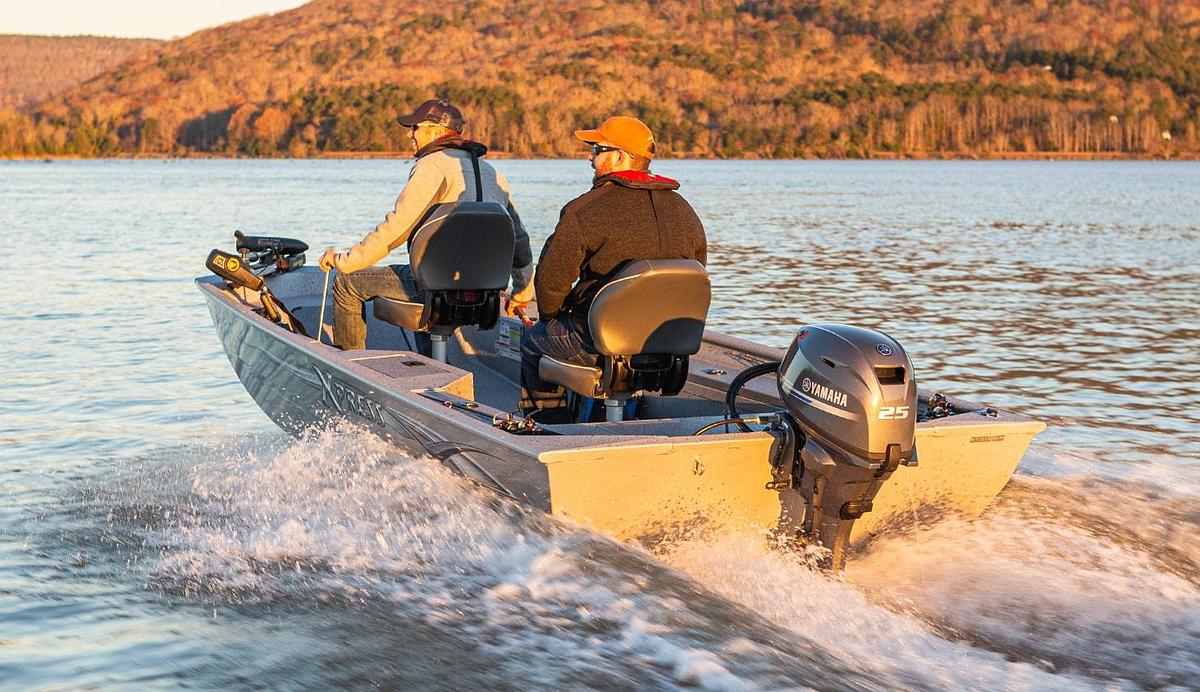

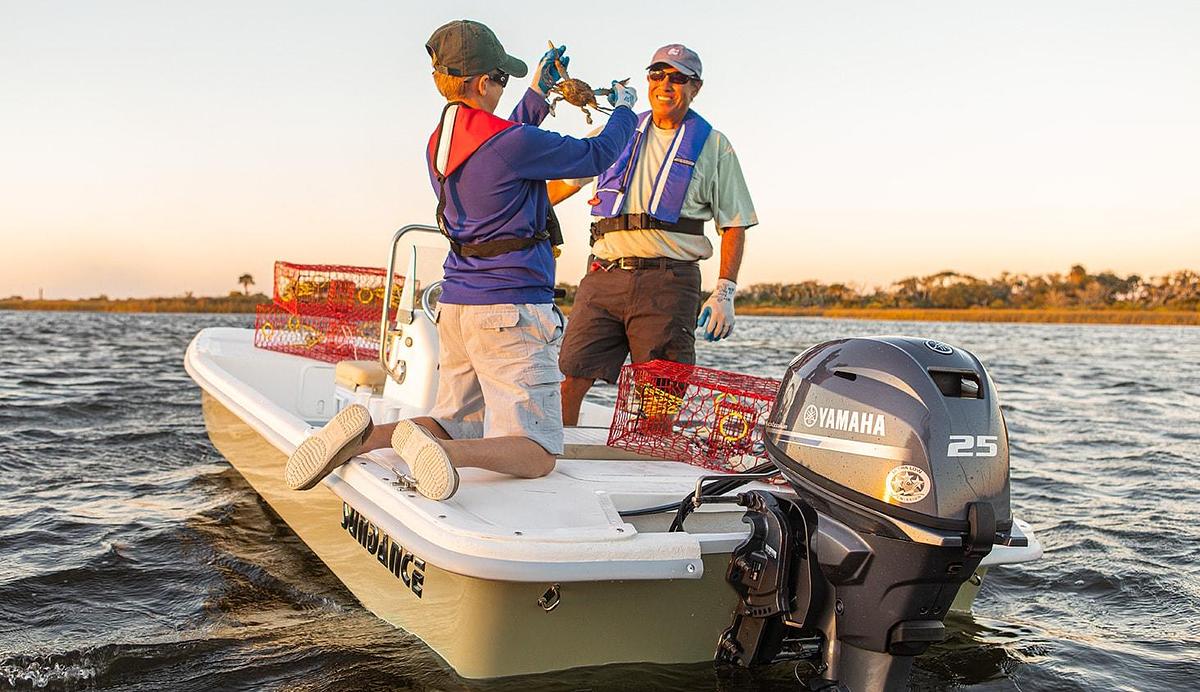

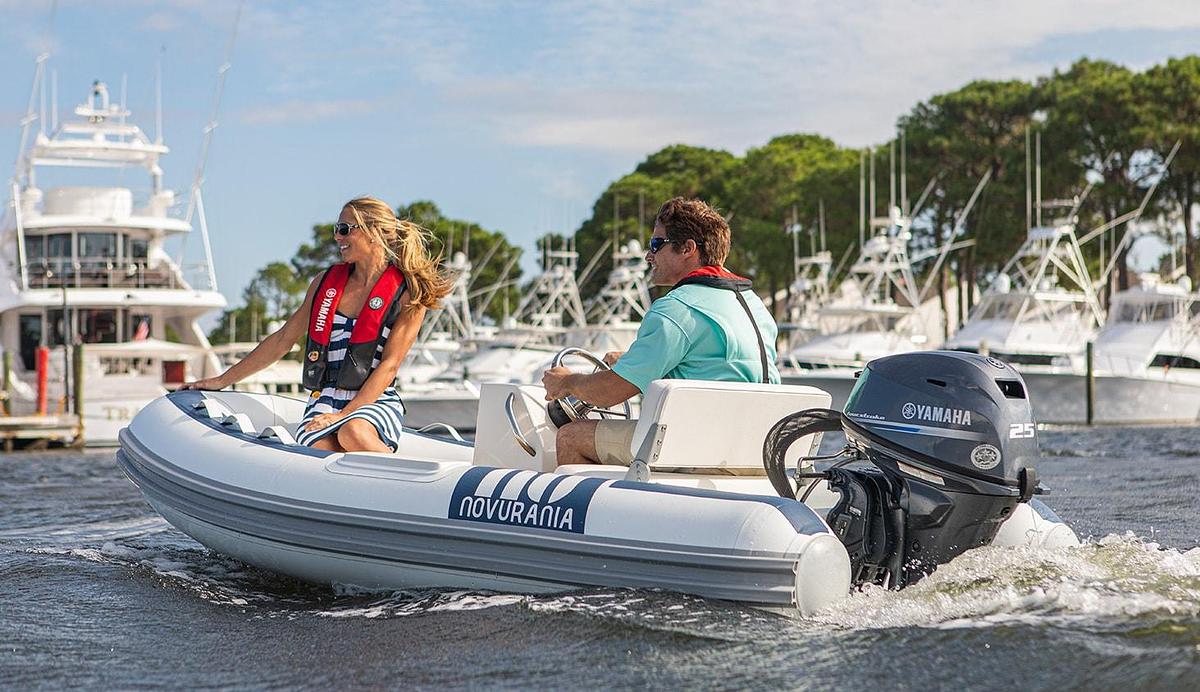

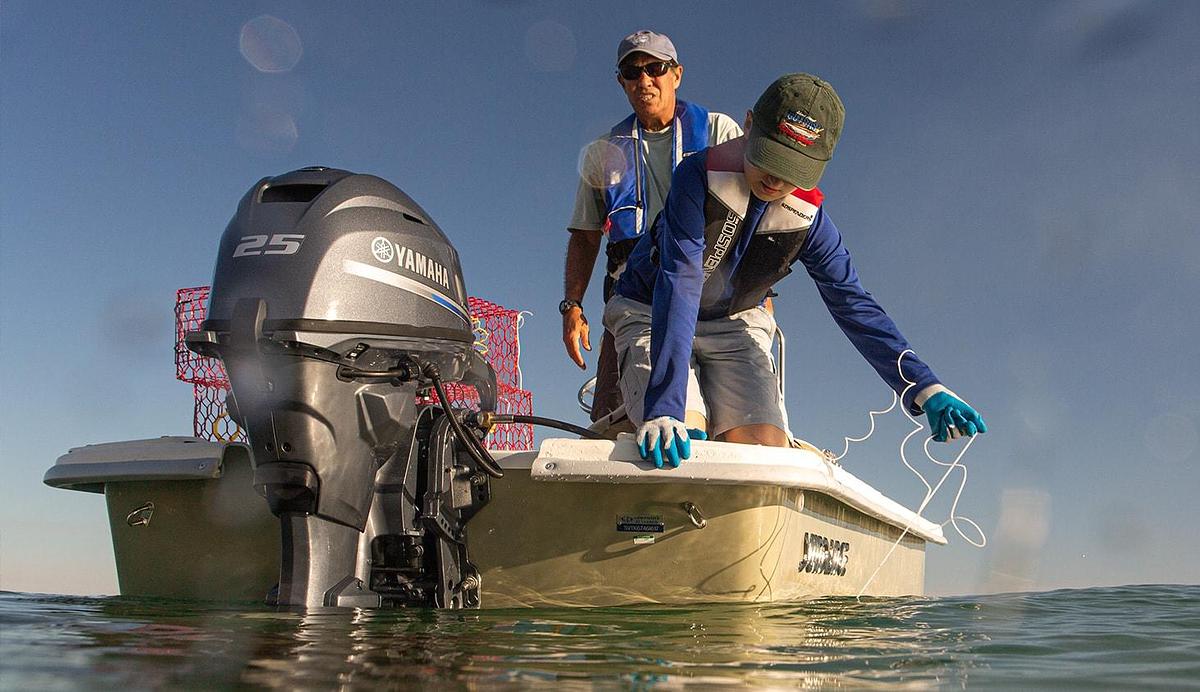

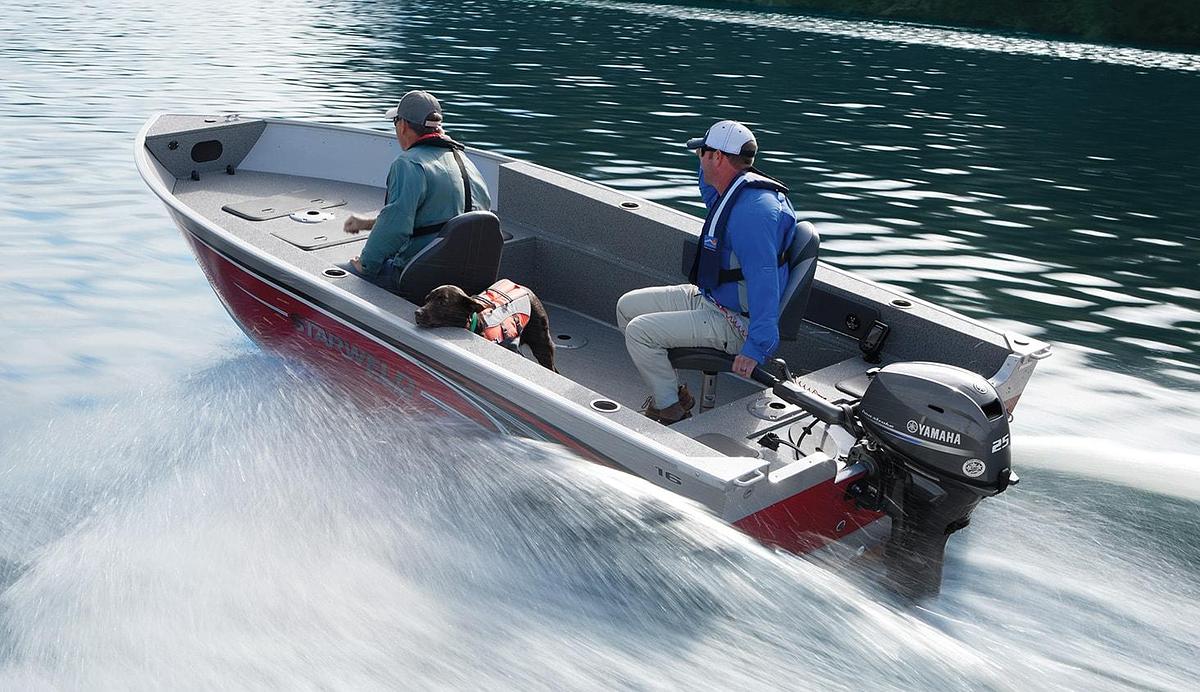

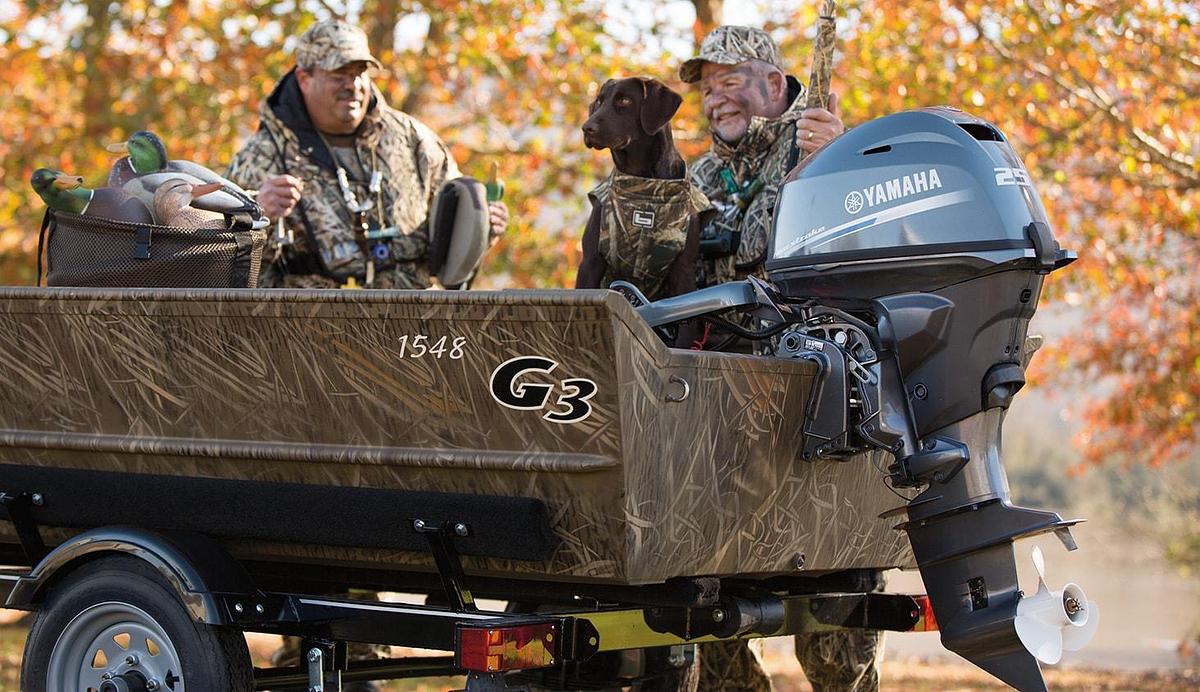

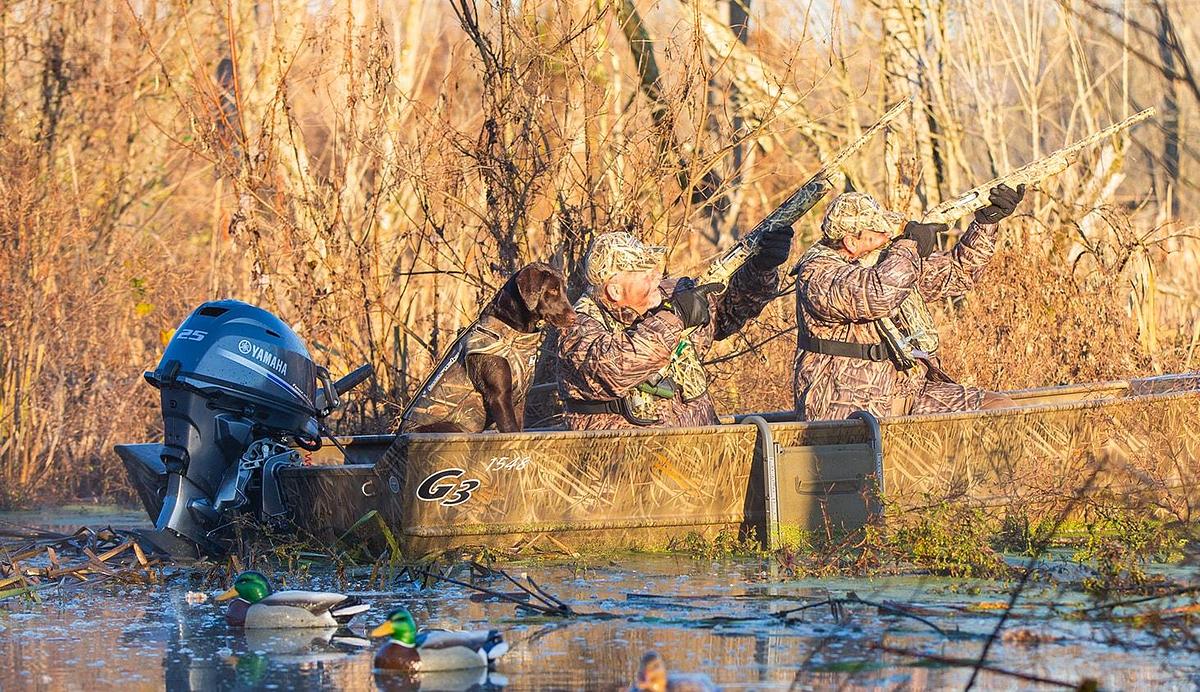

Our 432-cc 25-hp portable outboard features a streamlined, portable design and class-leading power-to-weight. While it’s 25 percent lighter than its previous design, it still packs exciting features like battery-less EFI. Pull-start models can now take advantage of this feature, plus the system is designed with an automatic decompression device to require even less effort for manual starting.

  • Now available in new pearlescent white and matte brown*, in addition to Yamaha gray
  • Only 126 pounds (15” shaft model)
  • Available in 15” and 20” shaft lengths and in a High-Thrust design (T25)
  • Powerful 16-amp alternator
  • Variable Trolling RPM Switch (VTS®) accessible depending on rigging
  • Select models, including 15-inch shafts, feature a shorter tiller with Power Trim & Tilt and a tilt-up feature for ease in small spaces

    • *New color options available in select models and subject to availability.

    Specifications

    ManufacturerYamaha
    ConditionNew
    Weight †57kg (126 lbs) - 65kg (143 lbs)
    Full Throttle RPM Range5000 - 6000
    Fuel Induction SystemEFI
    Recommended Engine OilYamalube® 4M (See owner's manual)
    Engine Type2 cyl
    Displacement432cc
    Bore x Stroke65 x 65.1mm / (2.56 x 2.56 in)
    Prop Shaft Horsepower25 hp at 5500 rpm
    Alternator Output at W.O.T.16 amp
    Compression Ratio9.3:1
    Recommended FuelOctane 87
    Recommended Fuel FiltrationYamaha 10-Micron Fuel/Water Separating Filter (external)
    C.A.R.B. Rating2-Star
    ExhaustThrough Propeller
    Intake4
    IgnitionCDI Microcomputer
    Spark PlugDPR6EB-9
    Starting SystemElectric & Manual
    LubricationWet Sump
    Engine Oil Capacity1.1L/1.0L
    Recommended CoolingThermostatic Control
    Ethanol Blend Limit10% Maximum
    Gear Ratio2.00:1
    Gear ShiftForward, Neutral, Reverse
    Shaft Length15" - 20"
    Degree of Tilt62° - 63°
    Degree of Trim-3° through +16°
    Mounting CentersN/A
    Steering Angle (maximum)45° from center, either direction
    WarrantyLimited 3-year Pleasure, 3-year Government, 1-Year Commercial
