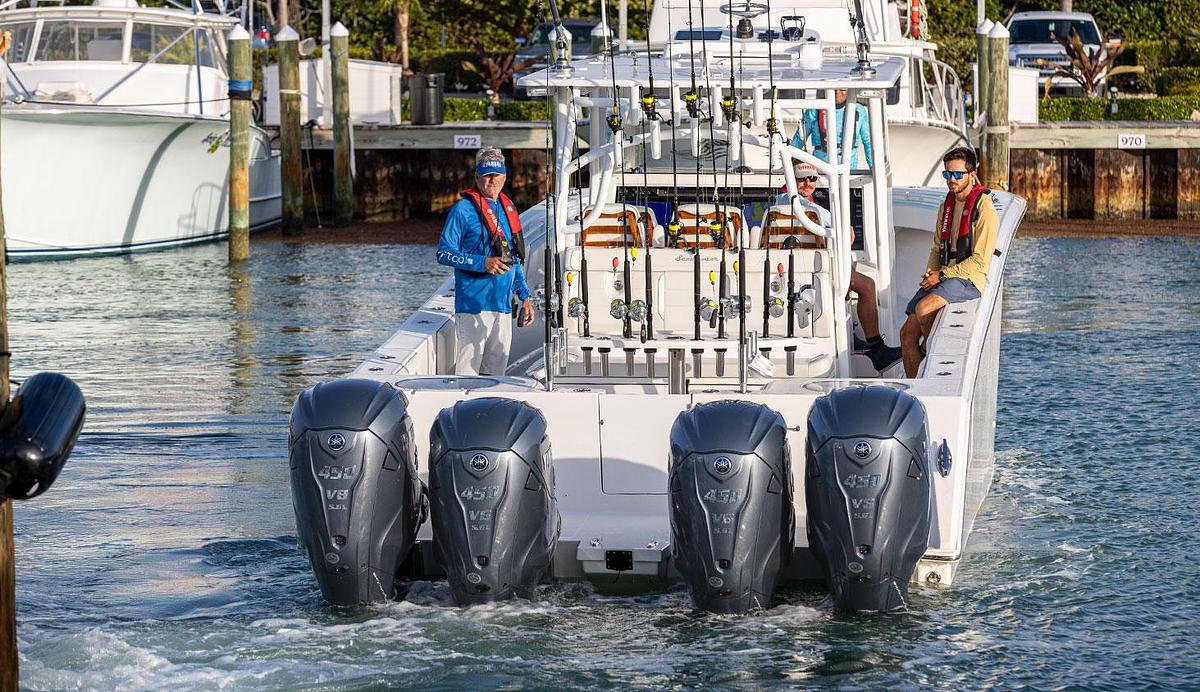

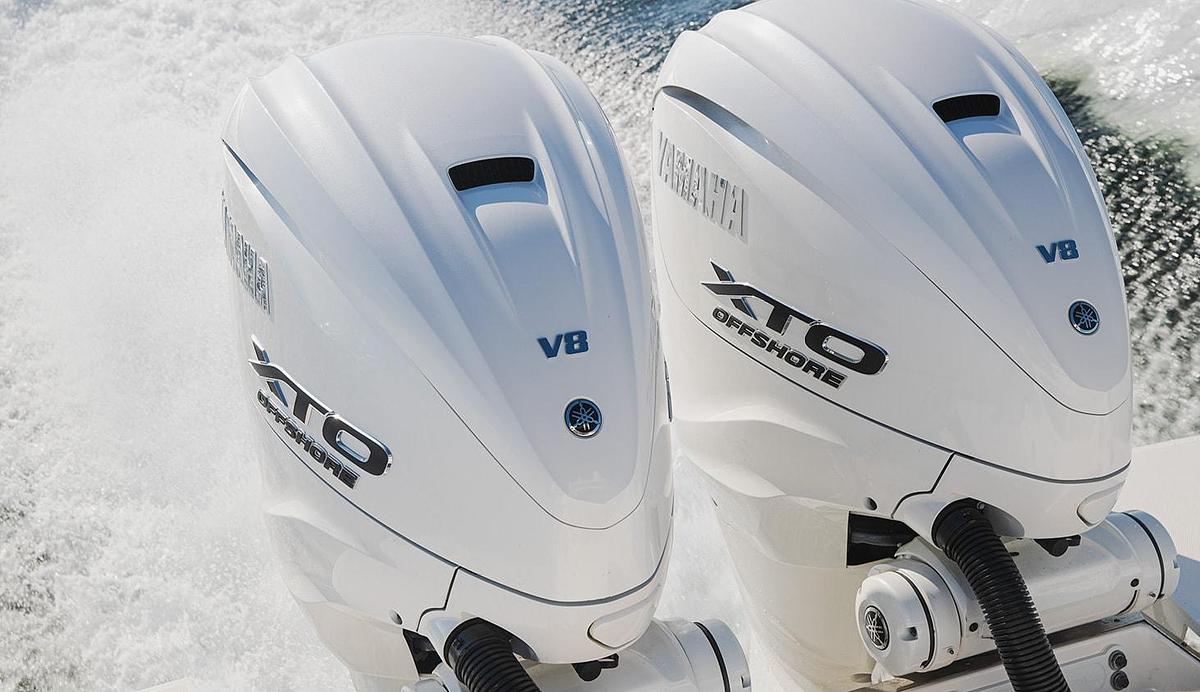

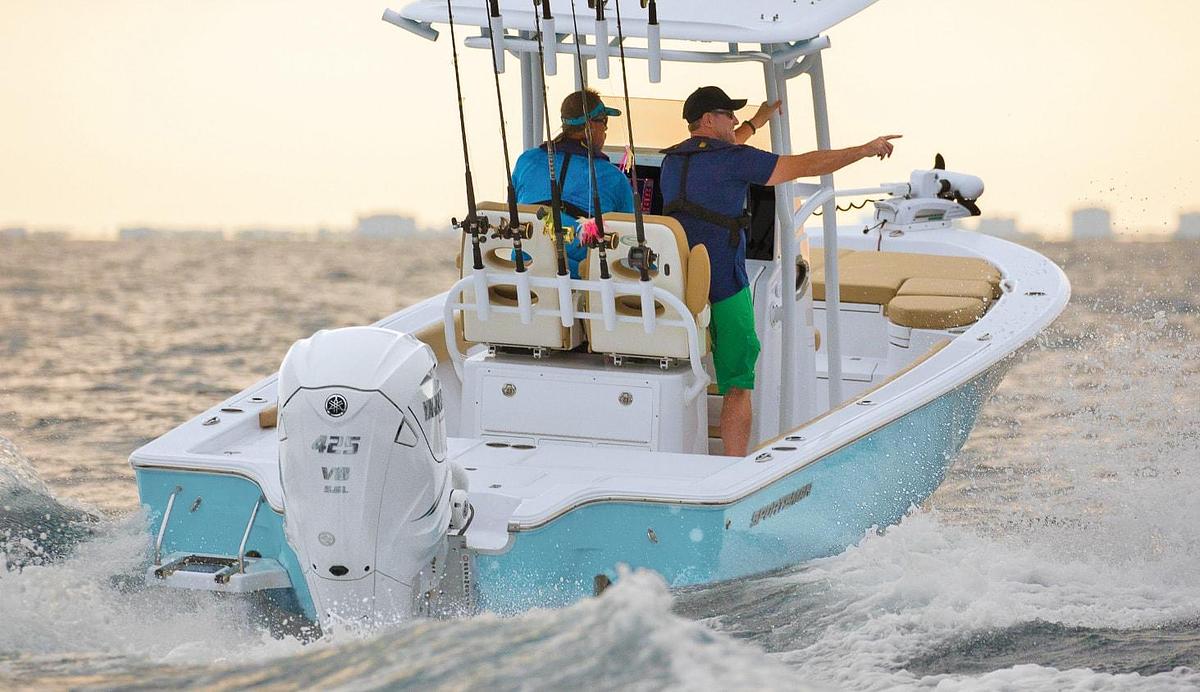

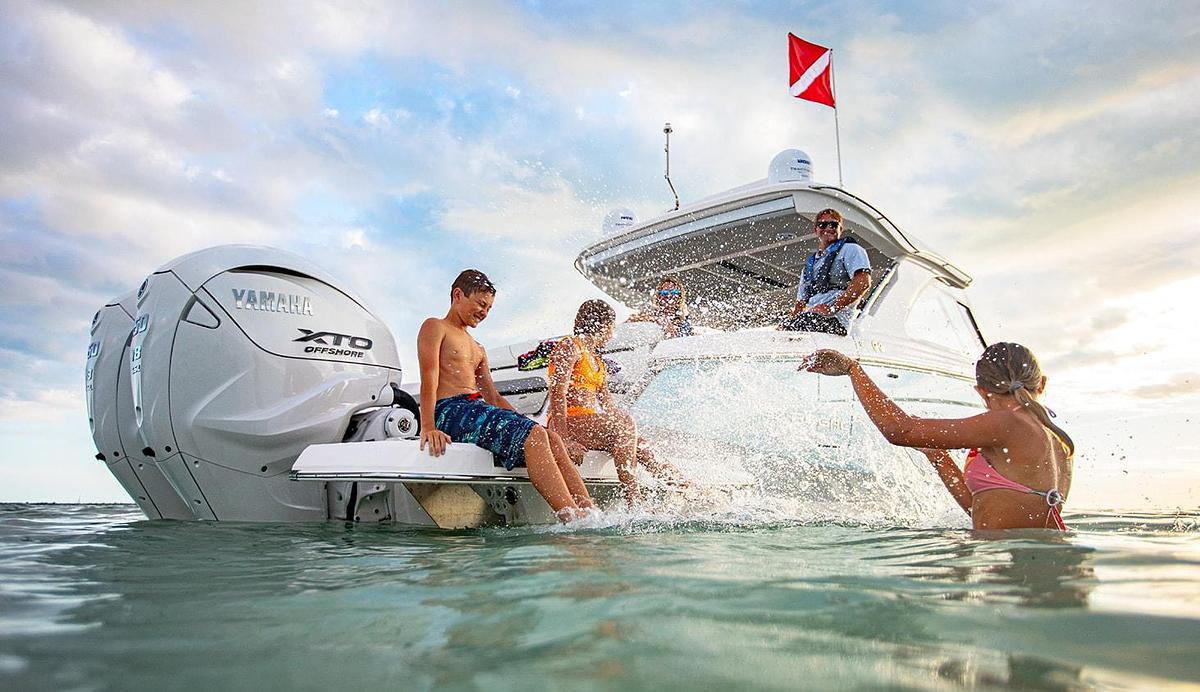

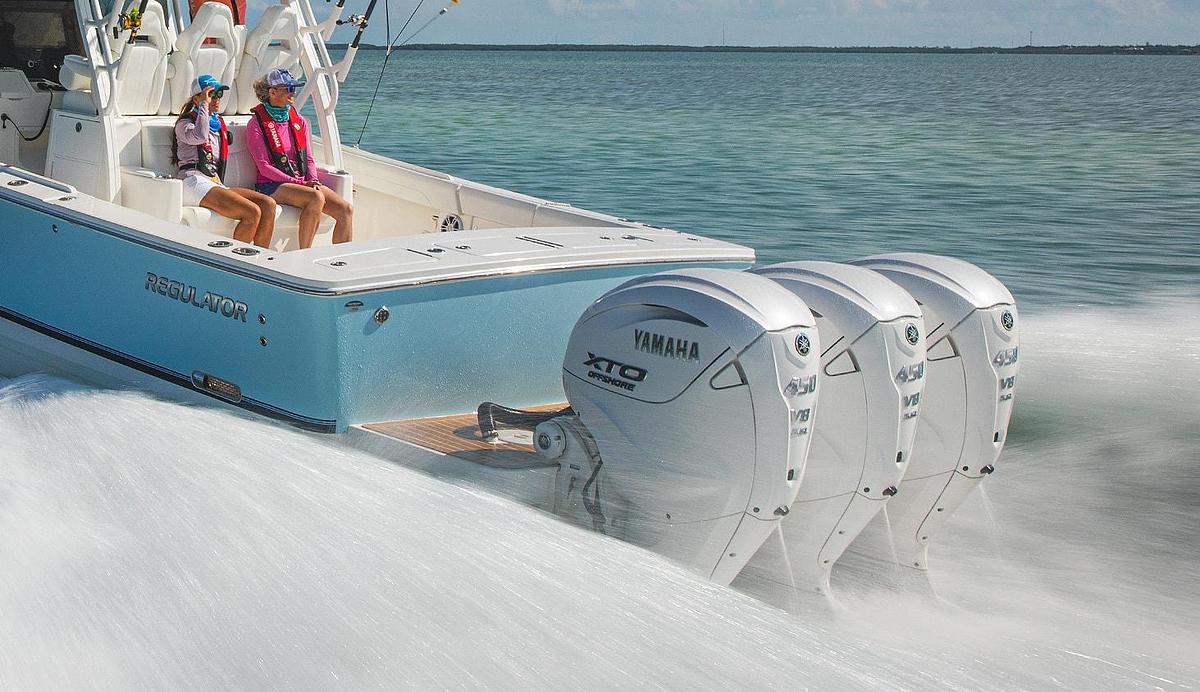

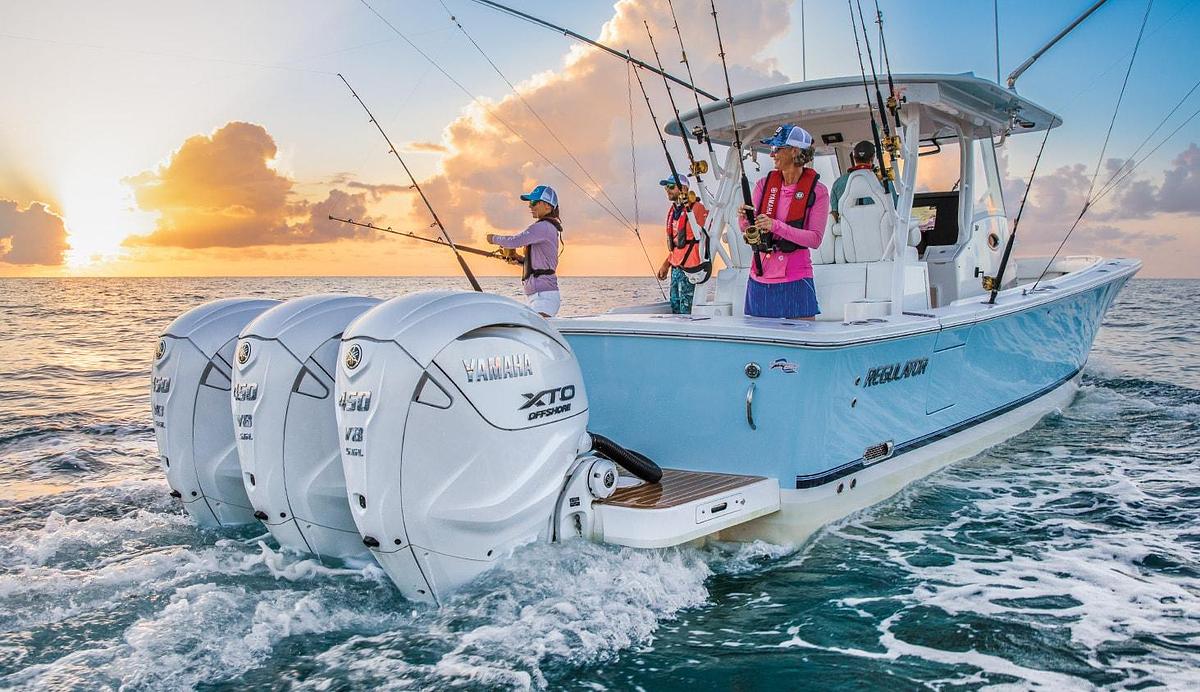

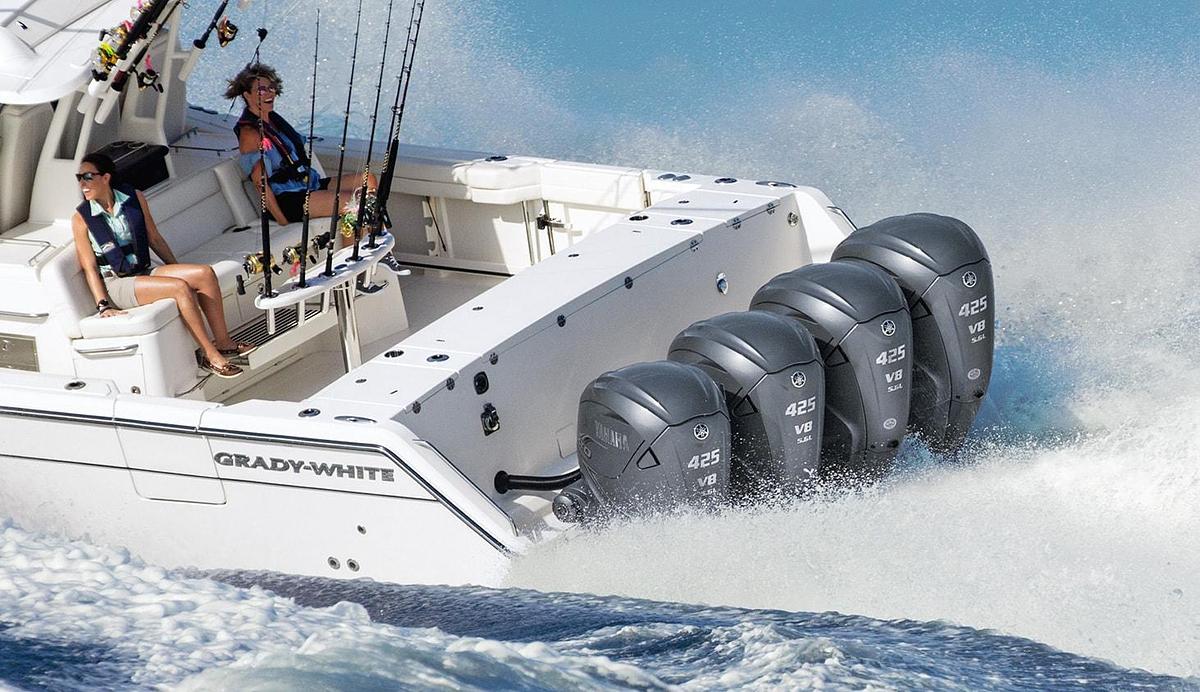

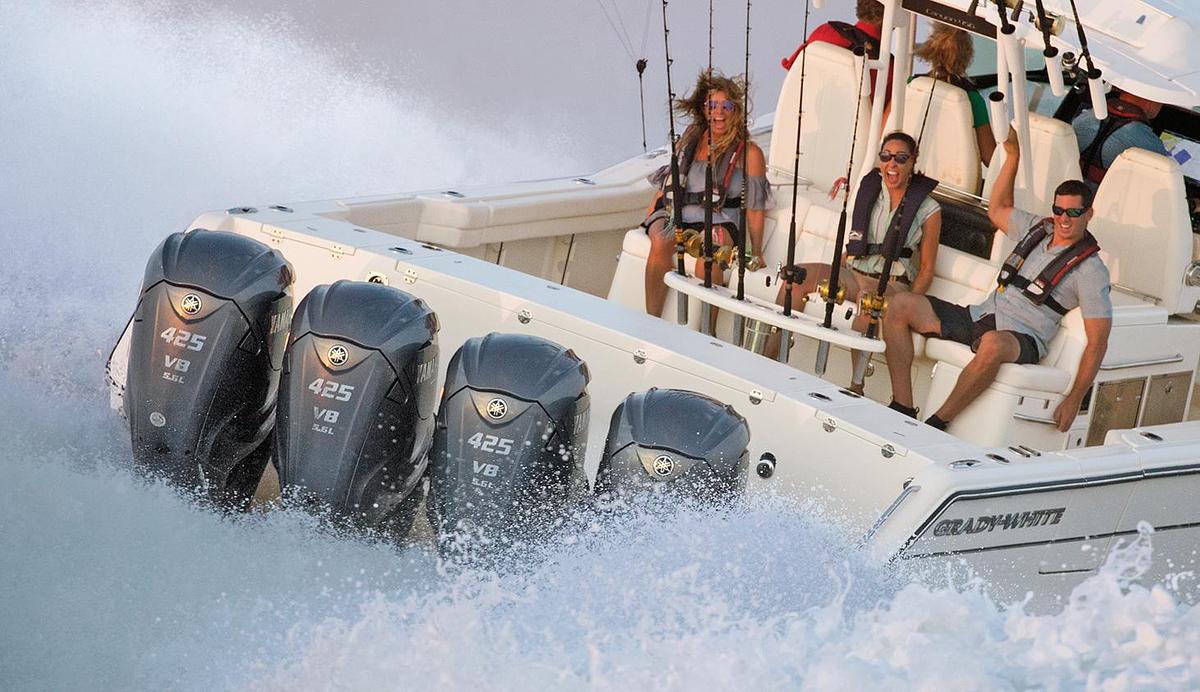

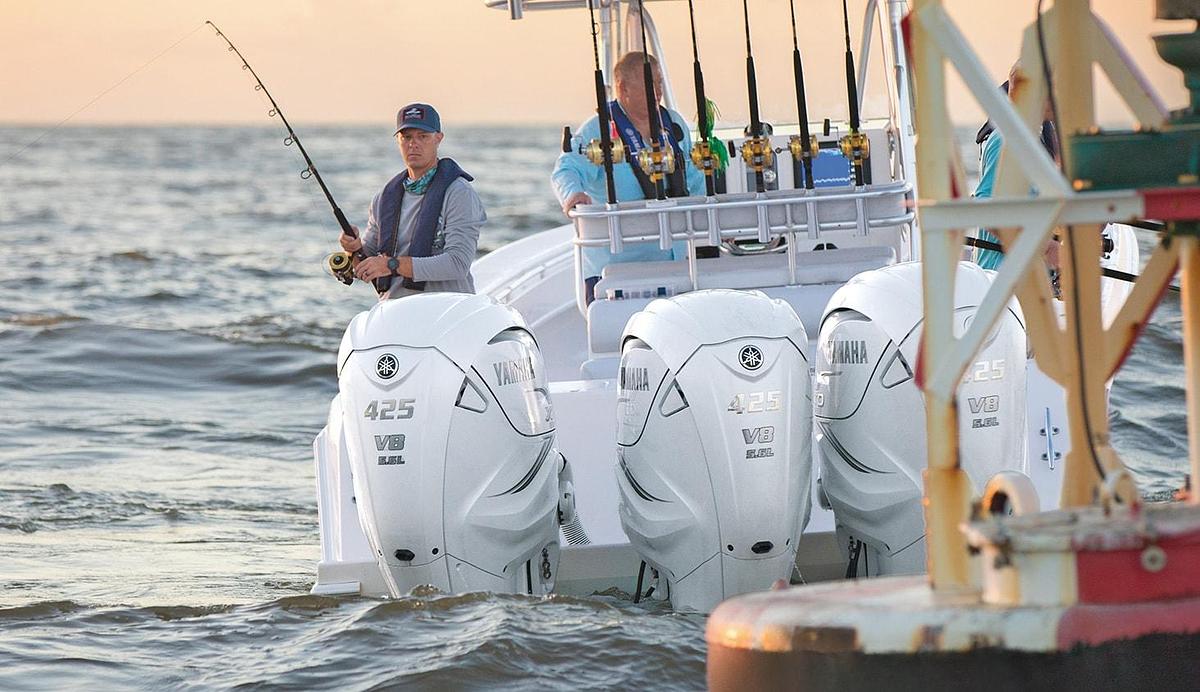

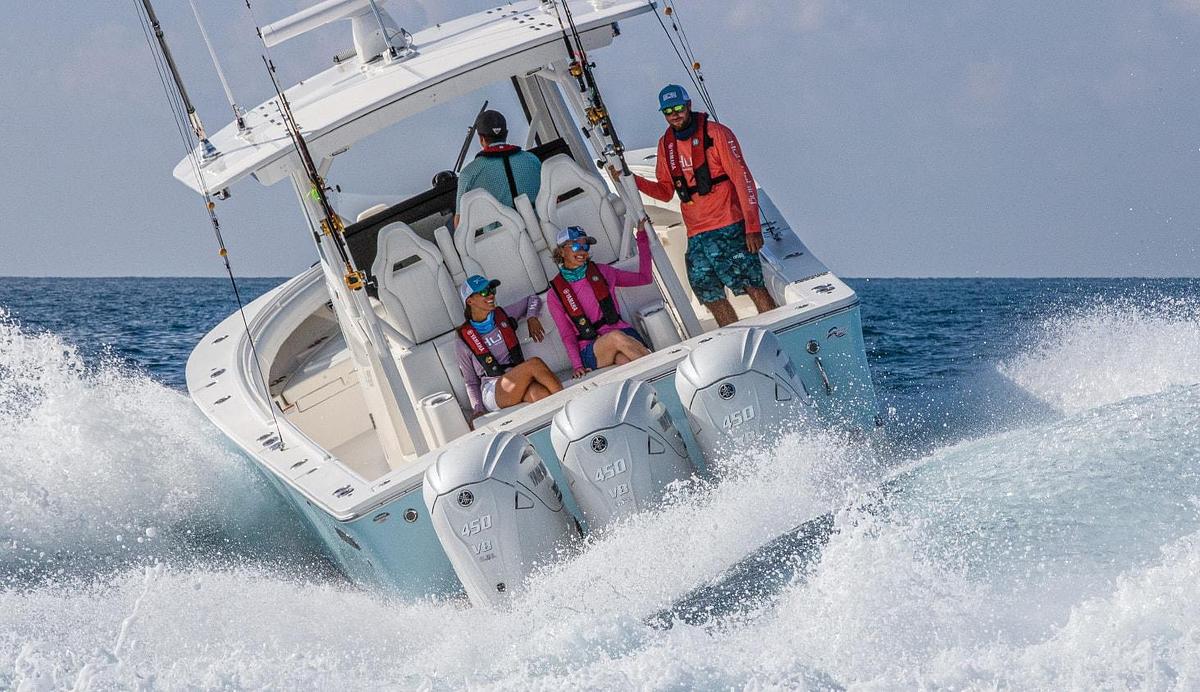

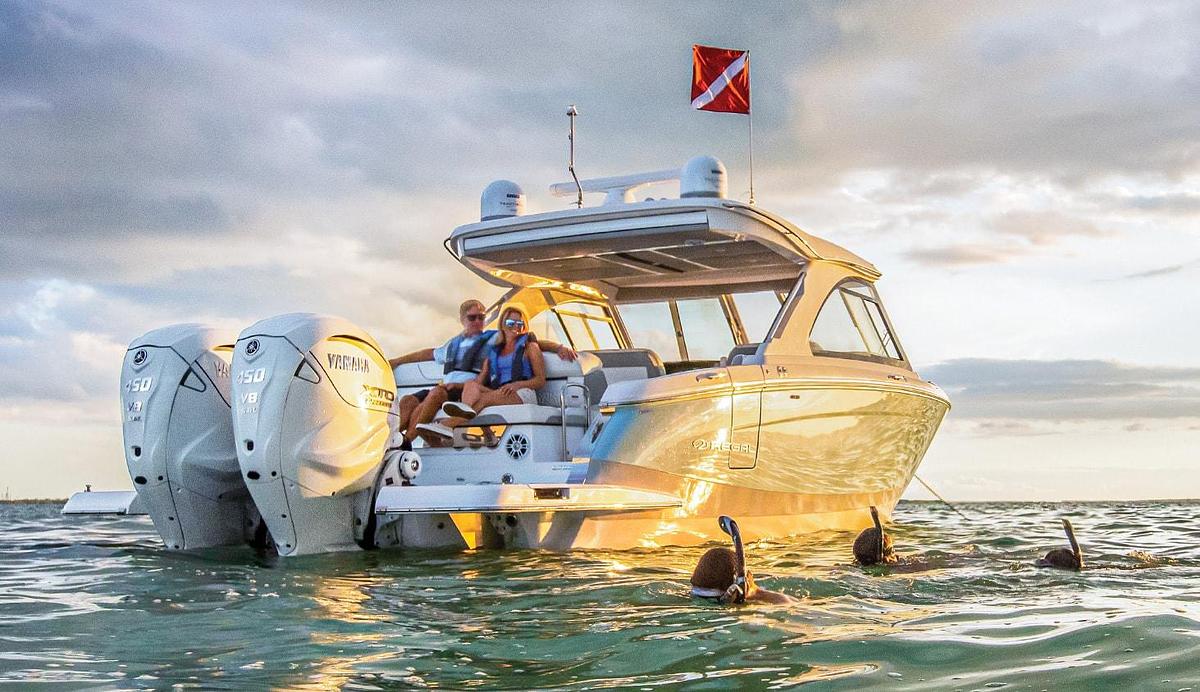

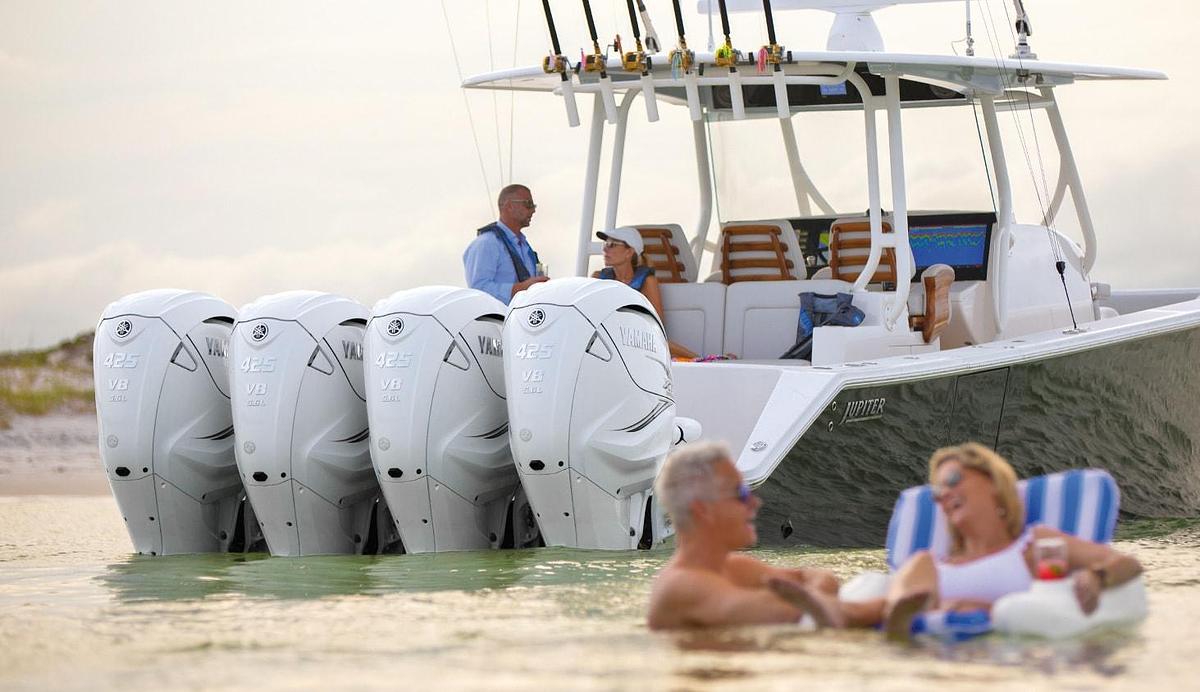

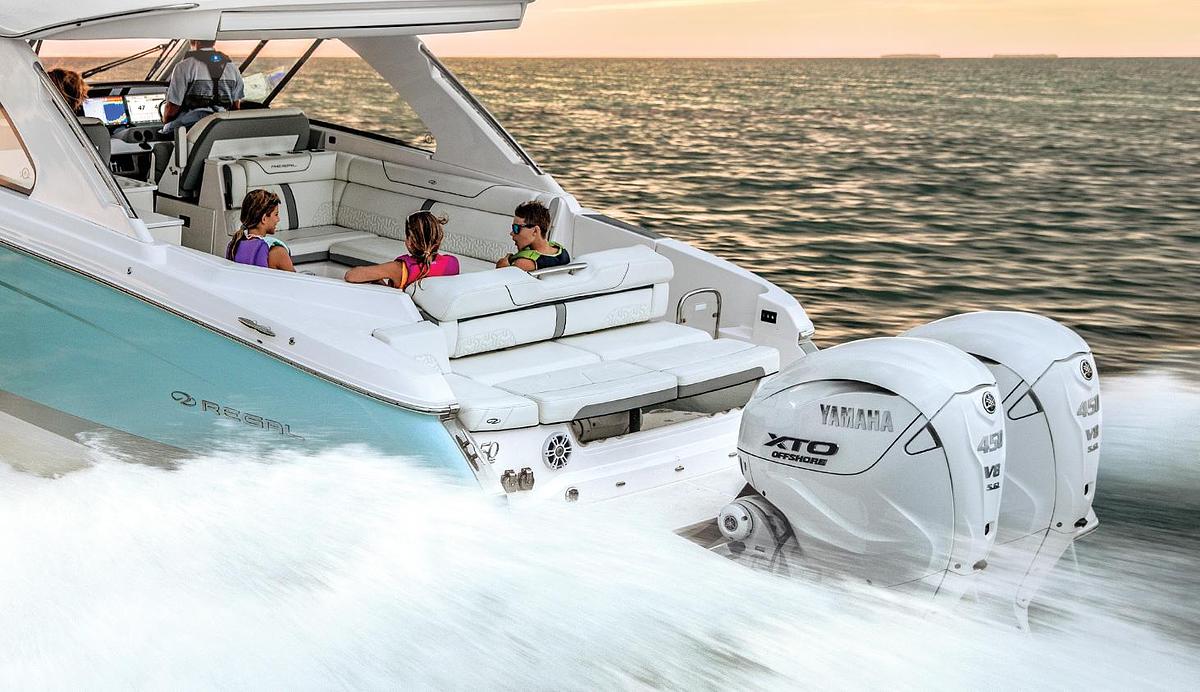

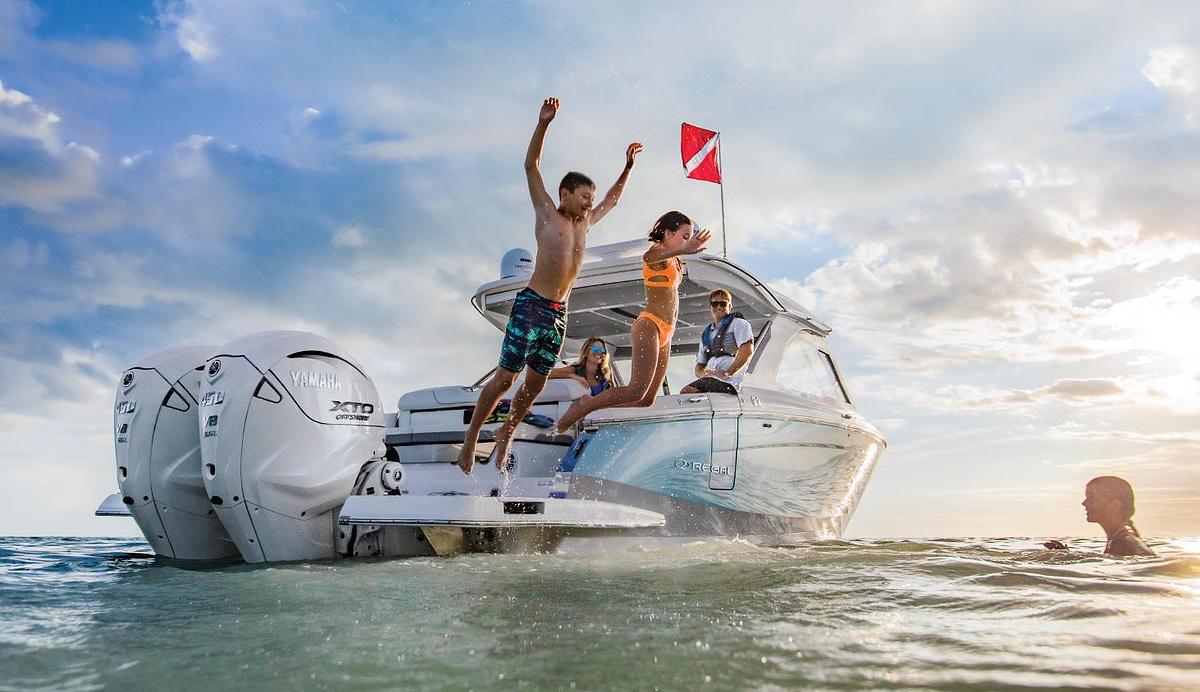

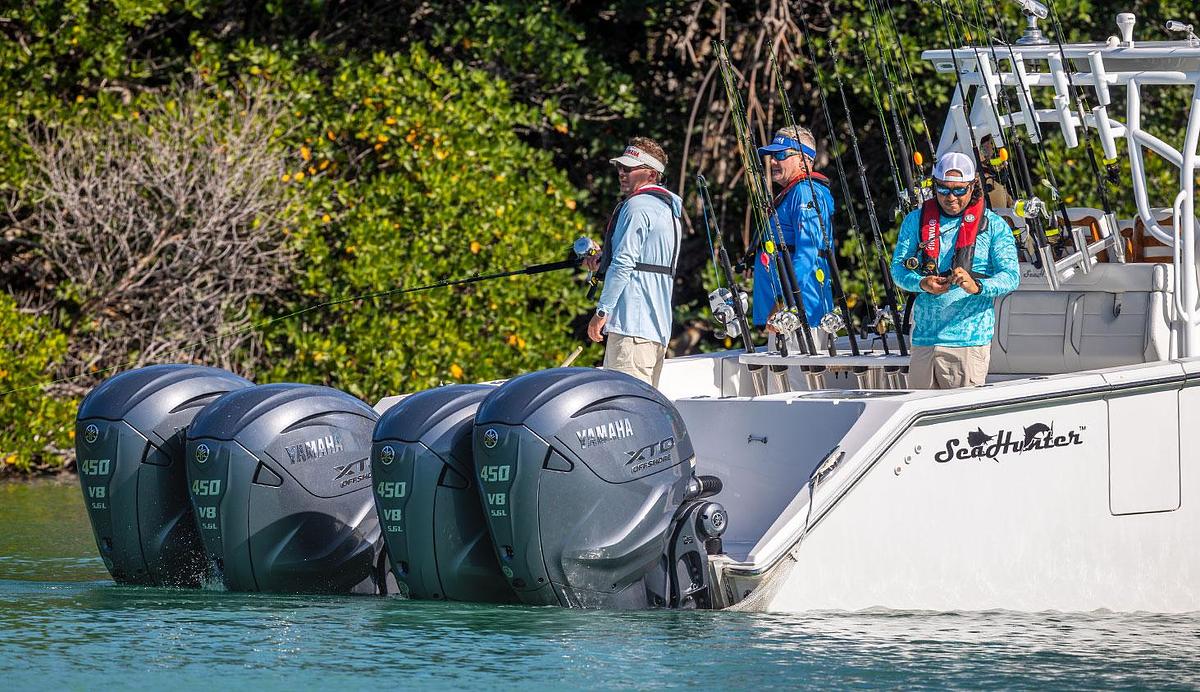

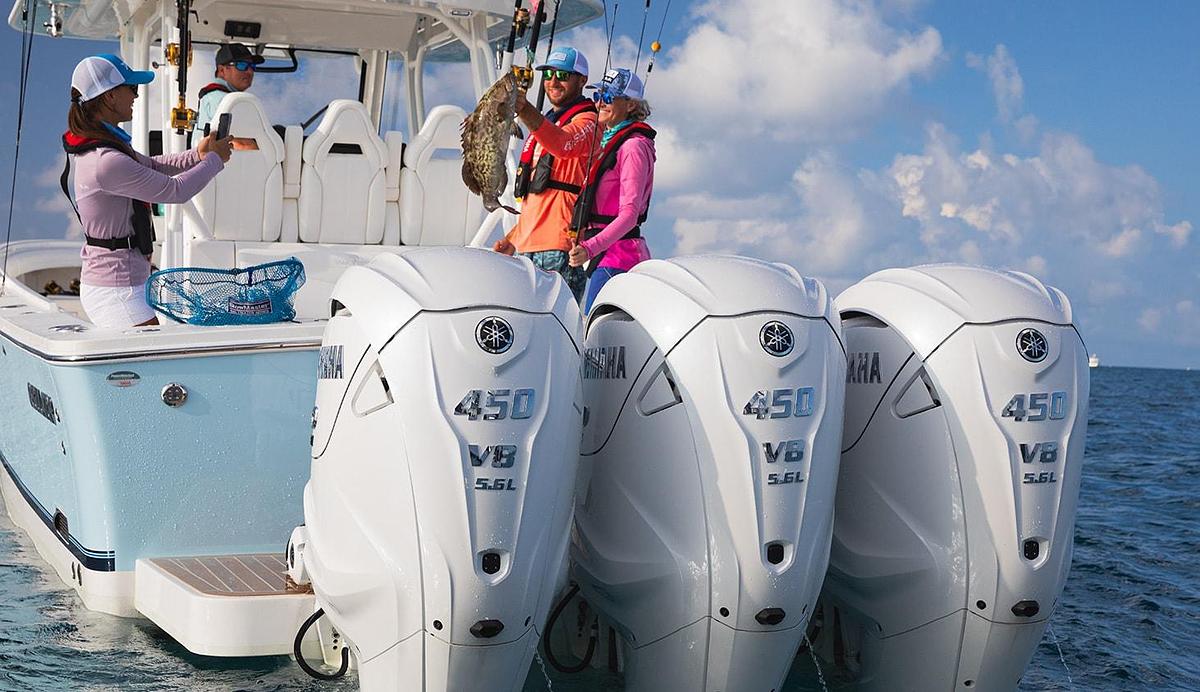

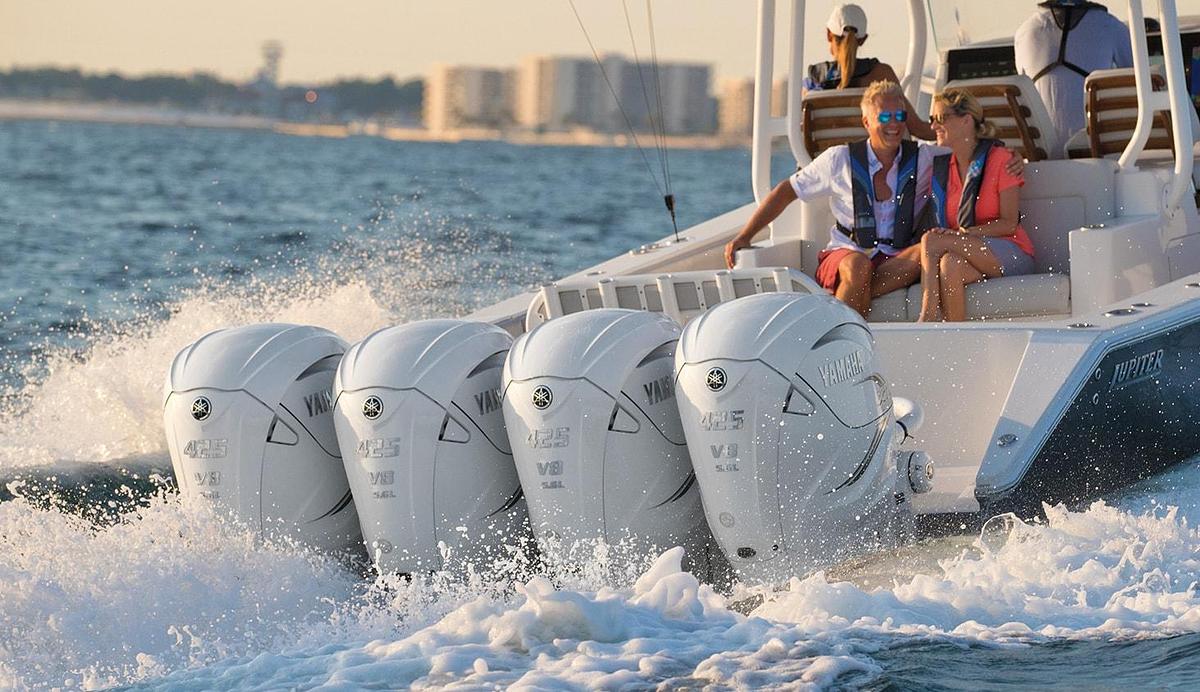

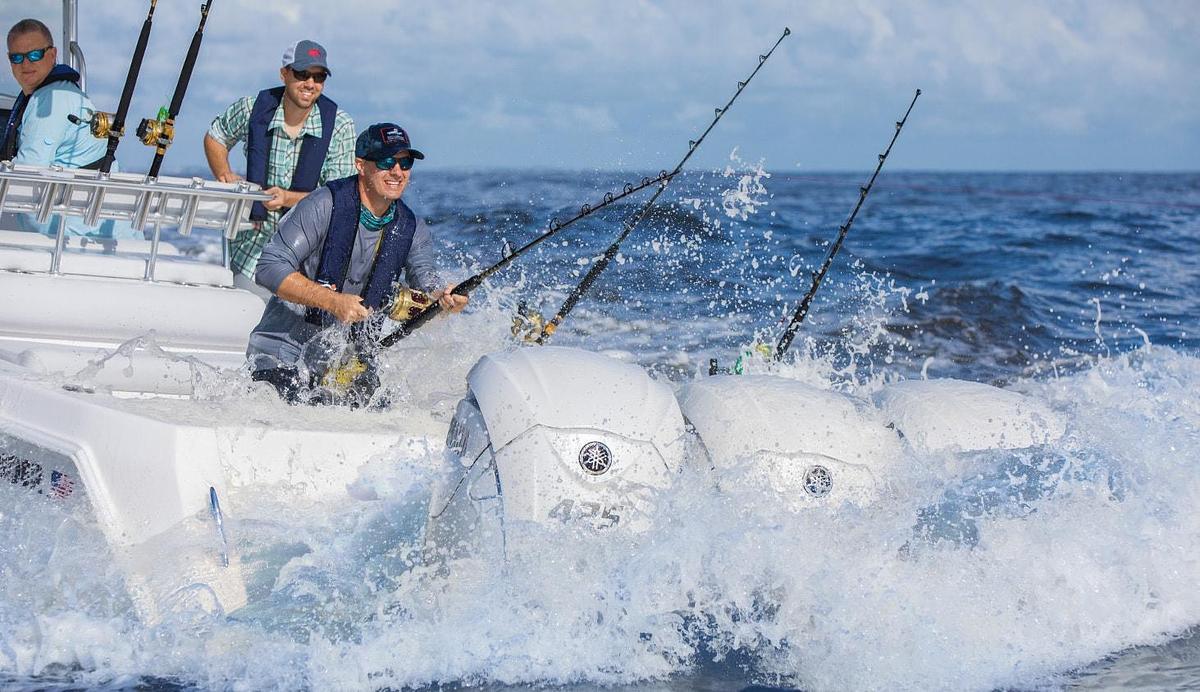

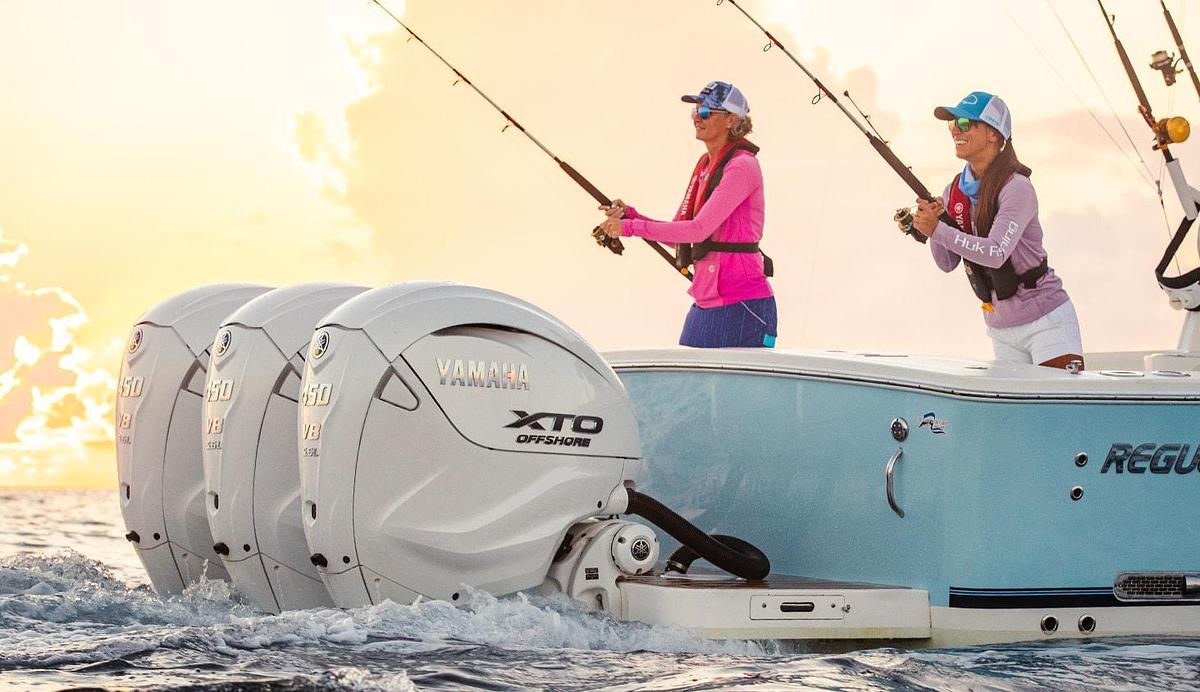

V8 5.6L 450 / 425 hp
Description
450 HP
The XTO Offshore® 450 packs everything boaters love about the original XTO outboard—the durability, power and reliability—plus extra horses. With impressive stats such as 12.3:1 compression ratio for outstanding fuel economy and power and industry-first features such as an integrated electric steering system and Phase Angle Control Charging, it’s purpose-built for the extremes of going offshore.
Specifications
| Manufacturer | Yamaha |
| Condition | New |
| Weight † | 437 kg (963 lbs) / 448 kg (988 lbs) / 458 kg (1010 lbs) |
| Full Throttle RPM Range | 5000 - 6000 RPM |
| Fuel Induction System | Direct Injection / Up to 2900 PSI |
| Recommended Engine Oil | Yamalube® 4M (See owner's manual) |
| Engine Type | V8 / DOHC / 32 valves / 4 Valves per Cylinder |
| Displacement | 5.6L |
| Bore x Stroke | 96 x 96 mm (3.78 x 3.78 in) |
| Prop Shaft Horsepower | 450hp at 6000 RPM |
| Alternator Output at W.O.T. | 102 Amp Gross, Max (up to 96 NET at idle) |
| Compression Ratio | 12.3:1 |
| Recommended Fuel | Octane 89 |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel / Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller (Except in Reverse Under 2500 RPM) |
| Intake | 32-valve |
| Ignition | TCI Microcomputer |
| Spark Plug | ILMAR7E-9 / Iridium |
| Starting System | Electric w/ PTT |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 7.8L / 8.2 Quarts | 7.5L / 7.9 Quarts |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | (25/14) 1.79 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 25" - 30" - 35" |
| Degree of Tilt | -4° through +73° |
| Degree of Trim | -4° through +16° |
| Mounting Centers | 28.5" |
| Steering | Integrated, Electric Actuation |
| Steering Angle (maximum) | 31° from center, either direction |
| Warranty | Limited 5-Year Pleasure, 3-Year Government, 1-Year Commercial |
